SAMTEC SSQ13001GD Square Post Socket
The product is a through-hole square post socket designed for reliable electrical connections in various electronic systems. It features high-temperature liquid crystal polymer or thermoplastic insulation materials and phosphor bronze contacts with gold or tin plating. This socket supports up to 100 mating cycles, handles voltage up to 550 VAC, and operates in temperatures from -55°C to +125°C with gold plating. Its robust construction provides low contact resistance and secure insertion and withdrawal forces, suitable for demanding electronic assemblies and terminal applications.
SAMTEC SSQ13001GD Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Nickel
- Current Rating: 6.3 A per pin
- Voltage Rating: 550 VAC when mated with TSW
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250"
- Insertion Force: 6 oz (standard), 3 oz (low), 6 oz (reverse)
- Withdrawal Force: 5 oz (standard), 2.6 oz (low), 2.9 oz (low, alternate plating)
- Max Cycles: 100
- RoHS Compliant: Yes
- Number of Pins: Up to 36 pins
- Certifications: Refer to Samtec specifications
- Physical Dimensions: Suitable for through-hole mounting, tailored to pin count and style

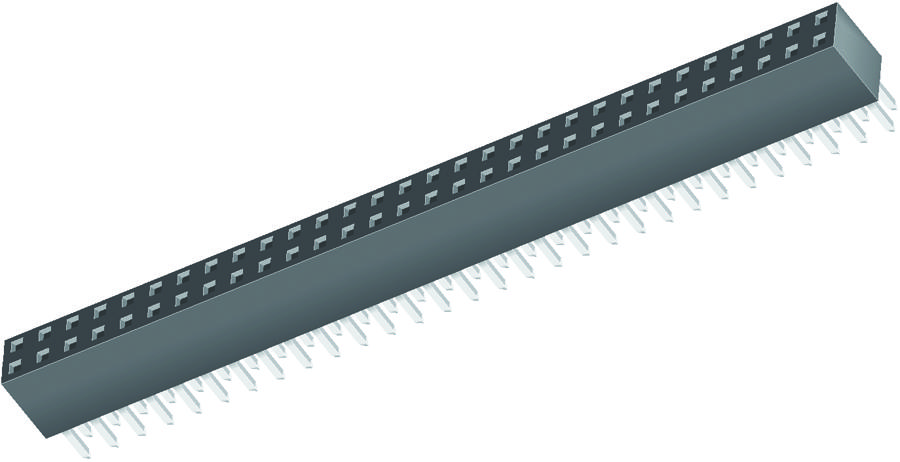

Buy the Samlec Series SQ Post Socket: SSQ13001GD
Purchase the high-quality Square Post Socket online now to ensure secure electrical connections in your projects. With its robust construction, gold or tin plating, and high current capacity, this socket guarantees durability and performance in demanding environments. Ideal for electronic assemblies requiring reliable insulations, low contact resistance, and multiple mating cycles. Available for quick shipping, this product is RoHS compliant and designed to meet industry standards. Enhance your product reliability by buying this essential component today.
Order your Samtec Series SSQ13001GD through-hole square post socket today and enhance your electronic assemblies with reliable, durable connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ13001GD?
You can click on the BUY or RFQ button to purchase SSQ13001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ13001GD?
You can download the SSQ13001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ13001GD?
SAMTEC
