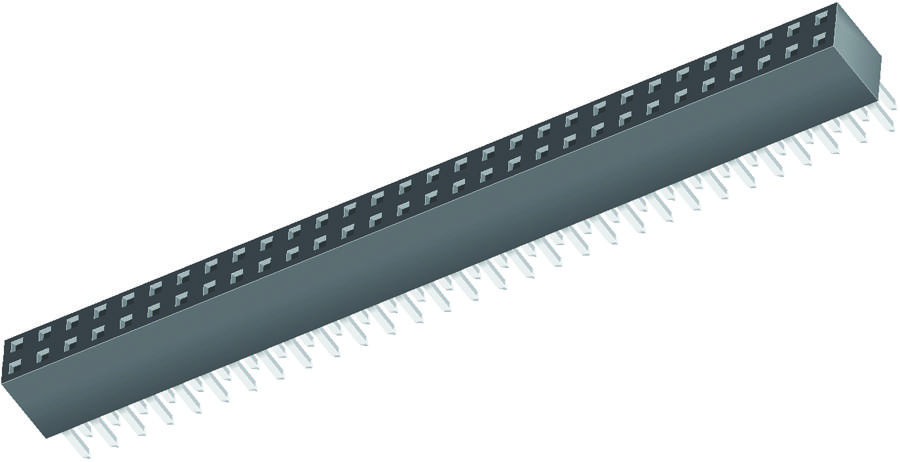

SAMTEC SSQ13501GD Through-Hole Square Post Socket
The through-hole square post socket features a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating, ensuring durability and high performance. Suitable for applications requiring a temperature range from -55°C to +125°C with gold plating or -55°C to +105°C with tin, it supports a voltage rating of 550 VAC and a current rating of 6.3 A per pin. The socket has an insertion depth of 0.145” to 0.250”, standard insertion forces, and an operational lifespan of up to 100 cycles with gold plating. It is RoHS compliant and designed for reliable electrical connections in demanding environments.
SAMTEC SSQ13501GD Through-Hole Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Current Rating: 6.3 A per pin
- Voltage Rating: 550 VAC
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250"
- Insertion Force: Standard= 6 oz, Low Insertion Force= 2.6 oz, Very Low Insertion Force= 2.9 oz
- Withdrawal Force: Standard= 5 oz, Low Insertion Force= 2.6 oz, Very Low Insertion Force= 2.9 oz
- Max Cycles: 100 with 0.25 μm Au
- RoHS Compliant: Yes
Buy the Samtec Series SSW: Through-Hole Square Post Socket SSQ13501GD
Enhance your electronic assemblies with this high-quality through-hole square post socket that supports up to 6.3 A per pin and features durable gold or tin plating. Designed for reliable connections in demanding environments, it operates from -55°C to +125°C with gold plating, ensuring high-performance and long-term stability. RoHS compliant, easy to install with standard and low insertion forces, and capable of withstanding up to 100 mating cycles. Perfect for industrial electronics, automation, and control systems requiring dependable, professional-grade components.
Order your Samtec Series SSQ13501GD high-reliability through-hole socket today and ensure stable, durable electrical connections for your projects.
