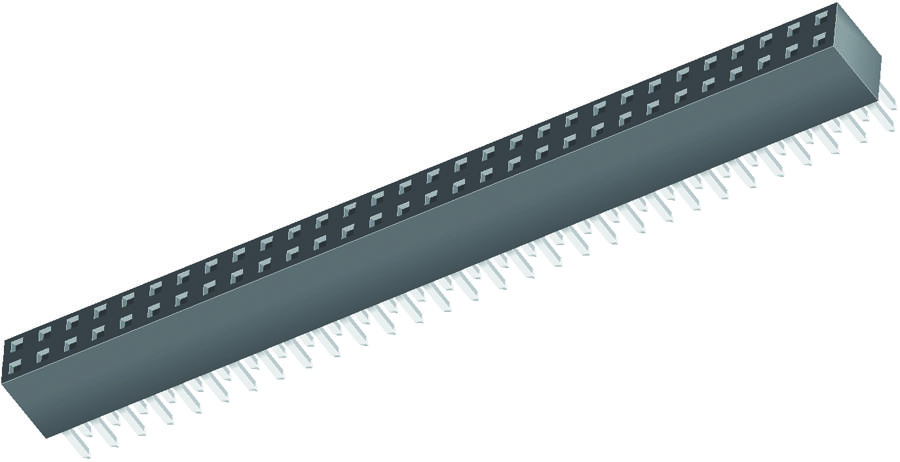

SAMTEC SSQ14001GD Square Post Socket
The product is a through-hole square post socket designed for reliable connections in electronic assemblies. Made from black liquid crystal polymer insulator material with options for high-temperature thermoplastic, it features phosphor bronze contacts plated with gold or tin. Rated for currents up to 6.3A per pin and operating temperatures from -55°C to +125°C, with a contact resistance of 10 milliohms. It offers low insertion and withdrawal forces, with maximum cycle ratings of 100, suitable for secure, long-lasting electronic connections in various applications.
SAMTEC SSQ14001GD Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50u" (1.27 u) thickness
- Current Rating: 6.3 A per pin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: Standard 6 oz (1.67 N), Low Force 3 oz (0.83 N), Very Low 2.6 oz (0.72 N)
- Withdrawal Force: Standard 5 oz (1.39 N), Low Force 2.9 oz (0.81 N)
- Max Cycles: 100 with 50u" gold plating
- Voltage Rating: 550 VAC mated with TSW
- RoHS Compliant: Yes
- Dimensions: Multiple pin configurations, suitable for through-hole mounting, compatible with various mate components
- Certifications: Recognized according to industry standards; specifics available on Samtec website
Buy the Buy Samtec SSW-125-01-G-S Through-Hole Square Post Socket Part Number SSW-125-01-G-S Online
Purchase the Samtec Square Post Socket online today and ensure secure, high-quality connections for your electronic projects. Featuring gold and tin plating options, it offers excellent durability and corrosion resistance. With a current rating of 6.3A per pin and temperature range from -55°C to +125°C, this socket supports robust performance in demanding environments. Easy to install with low insertion and withdrawal forces, its high cycle rating guarantees long-term reliability. Order now for fast, safe delivery and seamless integration into your devices.
Buy Samtec SSW-125-01-G-S through-hole square post socket now and experience reliable performance in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ14001GD?
You can click on the BUY or RFQ button to purchase SSQ14001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ14001GD?
You can download the SSQ14001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ14001GD?
SAMTEC
