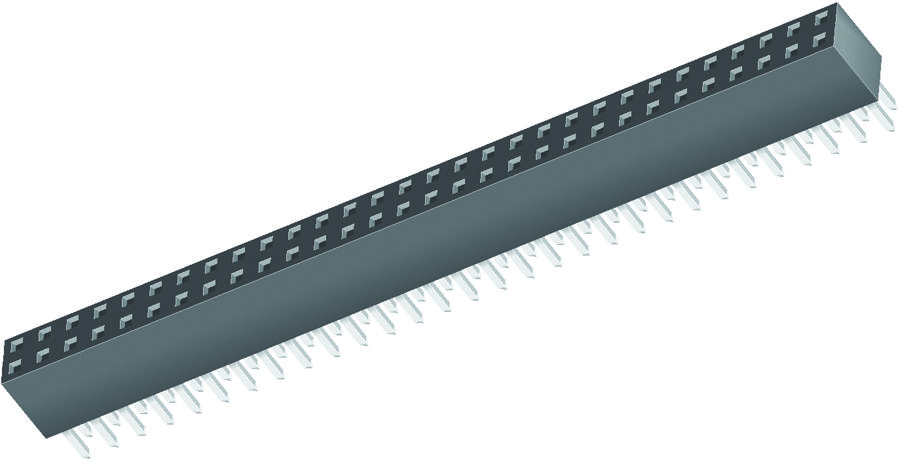

SAMTEC SSQ14501GD Square Post Socket
The through-hole square post socket features a black liquid crystal polymer insulator or a high-temperature thermoplastic, with phosphor bronze contact material plated with gold or tin. It supports current ratings of 5.7 A per pin and 6.3 A per row, with operating temperatures ranging from -55°C to +125°C depending on plating. The socket offers an insertion depth of up to 0.250 inches, standard insertion force of 6 oz, and is RoHS compliant. Suitable for precise electronic connections, it withstands up to 100 mating cycles with low insertion force options available.
SAMTEC SSQ14501GD Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50μ" (1.27μm)
- Current Rating: 5.7 A per pin, 6.3 A per row
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: Up to 0.250 inches (6.35 mm)
- Insertion Force: Standard 6 oz (1.67 N), Low Insertion Force 2.6 oz (0.72 N), Very Low 2.9 oz (0.81 N)
- Withdrawal Force: Standard 5 oz (1.39 N), Low Insertion Force 2.6 oz (0.72 N), Very Low 2.9 oz (0.81 N)
- Voltage Rating: 550 VAC mated with TSW
- Max Cycles: Up to 100 mating cycles
- RoHS Compliant: Yes
Buy the Samtec Series SSQ Square Post Socket: SSQ14501GD
Purchase the Samtec Square Post Socket SSQ14501GD online today for reliable, high-performance electrical connections. Designed with robust materials like phosphor bronze and plated with durable gold or tin, it supports high current ratings and wide temperature ranges, ensuring longevity and dependable operation in demanding environments. Easy to install with a low insertion force option, this socket is ideal for engineers and electronics professionals seeking quality, durability, and quick online procurement. Elevate your electronic design with this precision component now.
Buy Samtec SSQ14501GD now and experience unmatched reliability and performance for precise electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ14501GD?
You can click on the BUY or RFQ button to purchase SSQ14501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ14501GD?
You can download the SSQ14501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ14501GD?
SAMTEC
