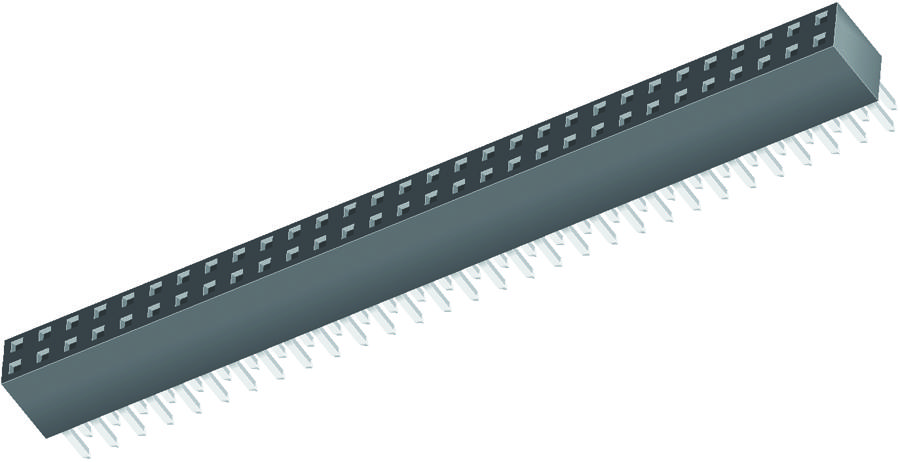

SAMTEC SSQ15001GD Through-Hole Socket
The through-hole socket features a black liquid crystal polymer or high-temperature thermoplastic insulator and phosphor bronze contacts with gold or tin plating, rated for currents up to 6.3 A per pin and operating temperatures between -55°C and +125°C. It provides a flexible insertion depth from 0.145” to 0.250”, with low insertion and withdrawal forces suitable for high-reliability applications. Compliant with RoHS, it withstands up to 100 mating cycles, making it ideal for industrial electronic connections requiring durability and precision.
SAMTEC SSQ15001GD Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 6.3 A per pin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250"
- Insertion Force: 6 oz (1.67 N) average (standard), 0.83 N (low force)
- Withdrawal Force: 5 oz (1.39 N) (standard), 2.9 oz (0.81 N) (low force)
- Max Cycles: 100
- Voltage Rating: 550 VAC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec SSQ15001GD – Reliable Through-Hole Socket for Industrial Applications
Enhance your industrial electronic connections with the high-quality through-hole socket suitable for demanding environments. Featuring a durable insulator and phosphor bronze contacts with gold or tin plating, this socket supports currents up to 6.3 A per pin and withstands temperatures from -55°C to +125°C. Its flexible insertion depth from 0.145” to 0.250” along with low force insertion and withdrawal ensure easy installation and high reliability. RoHS compliant and solderable for eco-friendly manufacturing, this socket is perfect for high-performance applications needing dependable, long-term connections.
Order your Samtec Series SSQ15001GD through-hole socket today and give your electronic assemblies the dependable durability they deserve.
Frequently Asked Questions
Where can I buy SAMTEC SSQ15001GD?
You can click on the BUY or RFQ button to purchase SSQ15001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ15001GD?
You can download the SSQ15001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ15001GD?
SAMTEC
