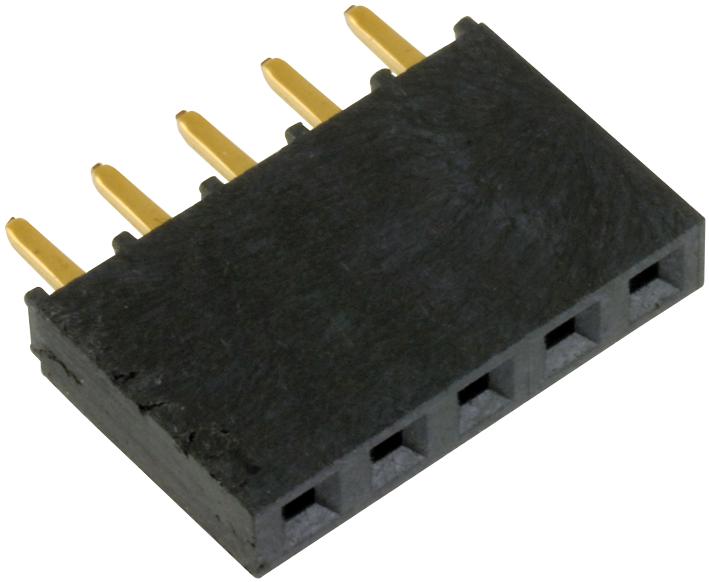

SAMTEC SSQ15001SSLL Power Socket
The product is a high-precision through-hole socket featuring black Liquid Crystal Polymer insulation, phosphor bronze contact material, and gold or tin plating options. It supports operational temperatures from -55°C to +125°C, with current ratings up to 6.3 A per pin and voltage ratings of 465 VAC / 655 VDC. Designed for reliable connections in electronic assemblies, this socket offers multiple configurations, including single, double, and triple rows, with various lead styles and plating options. It is RoHS compliant and suitable for rugged, high-temperature environments, ensuring durability and optimal electrical performance.
SAMTEC SSQ15001SSLL Power Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin with 50 µ
- .127 µm) Ni
- Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Insertion Depth: 3.68 mm to 6.35 mm depending on configuration
- Operating Voltage: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Standard Insertion Force: 125 grams (4.4 N)
- Max Force: 100 with 10 µ
- e Gold
- Supported Configurations: Single, Double, Triple row options
- Compatible Mates: TSW, MTSW, TSM, ZW, TSSH, HTSS
- Notes: Some lengths and styles are non-standard and non-returnable
Buy the Samtec Series TSM Power Socket: SSQ15001SSLL
Purchase the Samtec power socket online today for fast delivery and reliable connections. Designed with high-quality materials including phosphor bronze contacts and durable insulators, it supports up to 6.3 A per pin and operates across a wide temperature range. The socket features various configurations, plating options, and has RoHS compliance for environmental safety. Perfect for high-temperature and rugged environments, this socket ensures secure, efficient electrical connections in your electronic assemblies and manufacturing processes.
Get Samtec SSQ15001SSLL today—built for high-current power distribution and long-lasting durability.
