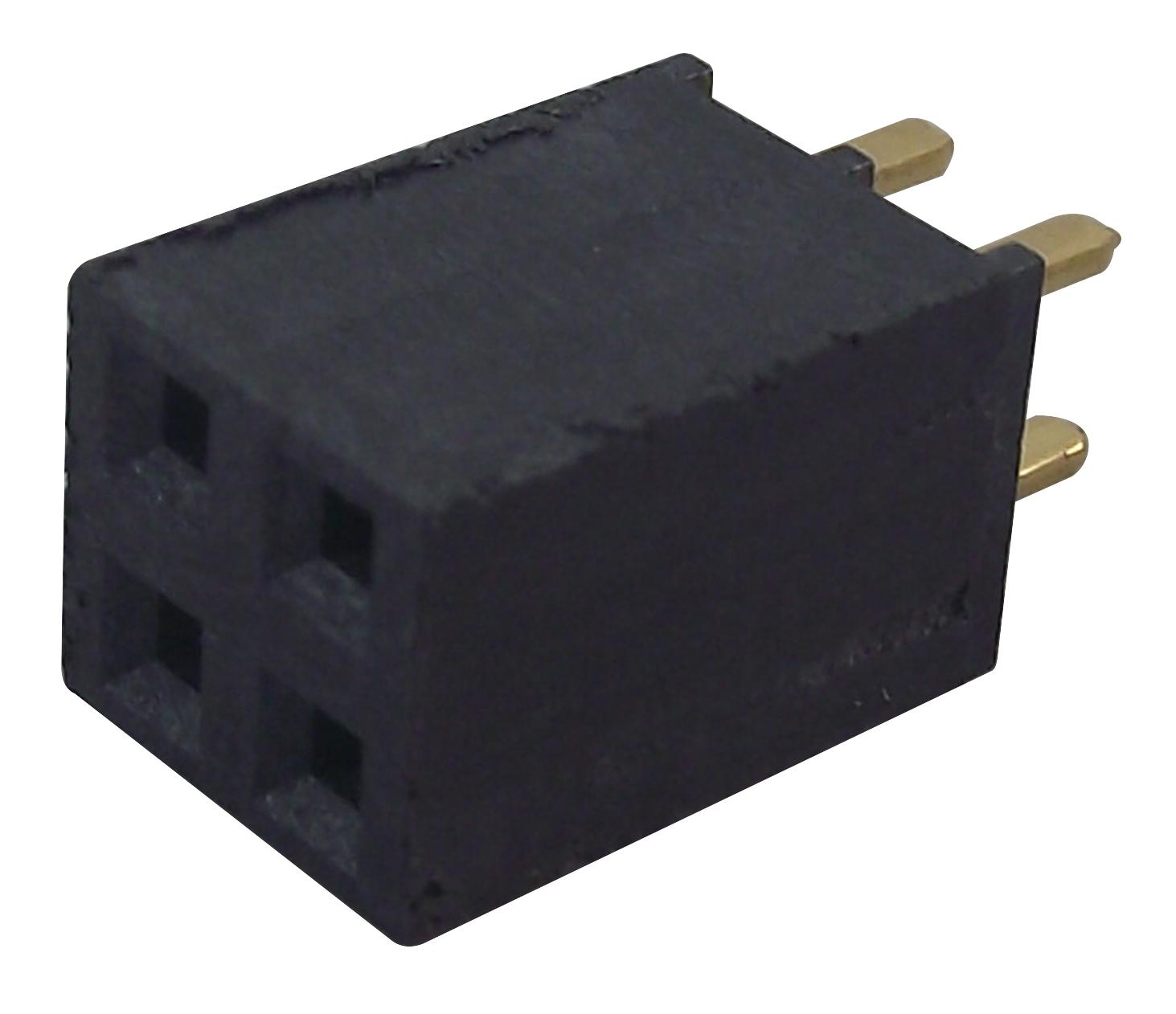

SAMTEC SSW10201GD Square Post Socket
The SSW10201GD is a through-hole square post socket designed for reliable electrical connections in electronic assemblies. Crafted with high-temperature black insulator material and phosphor bronze contacts plated with gold flash, it supports currents up to 4.7 A per pin and operates within a temperature range of -55°C to +105°C. Suitable for various multilayer PCBs, this socket offers easy insertion and secure retention, making it ideal for high-performance applications requiring durable and precise connectivity. Its compact size and professional build ensure dependable performance in demanding electronic environments.
SAMTEC SSW10201GD Square Post Socket Specifications:
- Insulator Material: Black High Temperature ™
- Contact Material: Phosphor Bronze
- Plating: Gold flash (0.127 μm) on contact, Nickel on tail
- Current Rating: 4.7 A per pin
- Temperature Range: -55°C to +105°C
- Contact Pitch: 2.54 mm (.100 inch)
- Insertion Force: Standard, low available
- Number of Positions: Up to 36
- Dimensions: Length varies with number of positions, typical tail length approximately 4.0 mm
- Mounting: Through-hole
- Certifications: Not specified but built to industry standards
Buy the Samtec Series SSW: Through-Hole Square Post Socket SSW10201GD
Purchase the Samtec Series SSW10201GD square post socket online today for consistent and durable electronic connections. Crafted with high-temperature insulators and gold-plated contacts, this socket supports up to 4.7 A per pin and operates across a wide temperature range for demanding applications. Its through-hole design ensures secure mounting on multilayer PCBs, providing reliable electrical contact for various electronic devices. Ideal for high-performance environments where dependable and precise connectivity is essential, this socket combines quality and ease of installation to meet your project's needs.
Order your Samtec Series SSW10201GD through-hole square post socket today and ensure reliable, high-quality connections in your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSW10201GD?
You can click on the BUY or RFQ button to purchase SSW10201GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10201GD?
You can download the SSW10201GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10201GD?
SAMTEC
