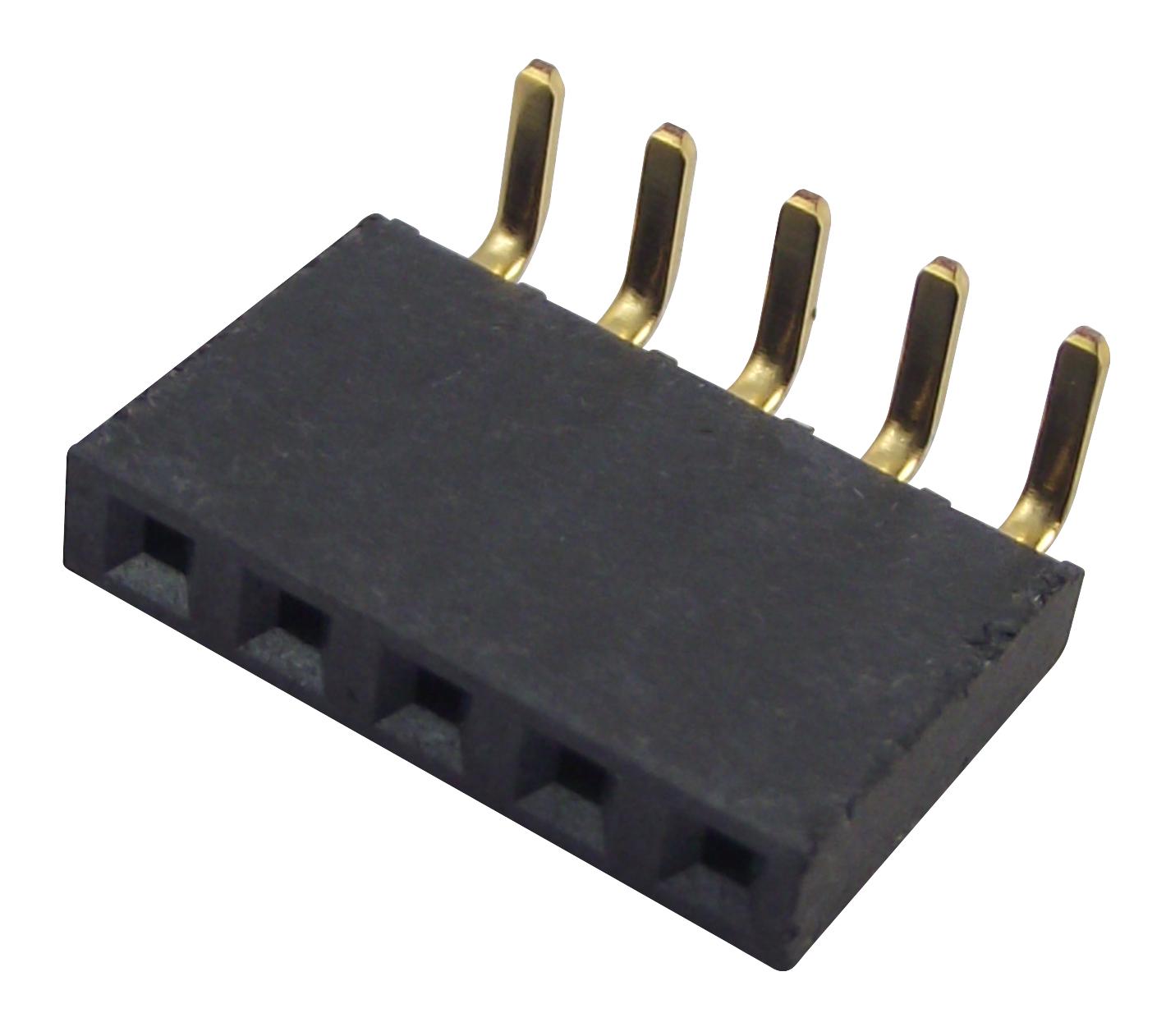

SAMTEC SSW10502GSRA through-hole socket strip
The SSW-105-02-G-S-RA is a 5-pole, 1-row, 2.54mm pitch through-hole socket strip with right angle design, featuring gold-plated phosphor bronze contacts and a liquid crystal polymer insulator for high-temperature applications. It supports operating temperatures from -55°C to 125°C, complies with UL and CSA standards, and is compatible with various connector types including DW, EW, HCMD, HCMS, and more. Available in single, dual, or triple row options, it offers reliable electrical connections suited for industrial and electronic projects requiring durable and high-performance sockets.
SAMTEC SSW10502GSRA through-hole socket strip Specifications:
- Number of Poles: 5
- Row Configuration: 1-row
- Pitch: 2.54 mm
- Contact Material: Phosphor Bronze
- Plating: Gold (Au) over 50 μm Ni
- Insulator Material: Liquid Crystal Polymer or High-Temperature Thermoplastic
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Operation: UL and CSA Certified
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Dimensions: Compatible with various connector types, lengths vary per design
- RoHS Compliant: Yes
- Mounting Style: Through-hole
- Application: Signal and power connections in industrial electronics
- Availability: Single, dual, or triple row options
- Part Number: SSW10502GSRA
Buy the Samtec SSW-105-02-G-S-RA – Reliable Connector for Industrial Applications
Discover the durable and high-quality Samtec through-hole socket strip with 5 poles, 2.54mm pitch, gold-plated contacts, suitable for industrial and electronic applications. Designed with high-temp insulators made of liquid crystal polymer or thermoplastic, it ensures reliable operation across a temperature range from -55°C to 125°C. With UL and CSA standards compliance and various configurations including single, dual, and triple rows, this connector provides excellent electrical performance and ease of installation, making it ideal for demanding industrial environments. Purchase online now for fast delivery.
Order your Samtec Series SSW-105-02-G-S-RA today and ensure robust, high-performance electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SSW10502GSRA?
You can click on the BUY or RFQ button to purchase SSW10502GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10502GSRA?
You can download the SSW10502GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10502GSRA?
SAMTEC
