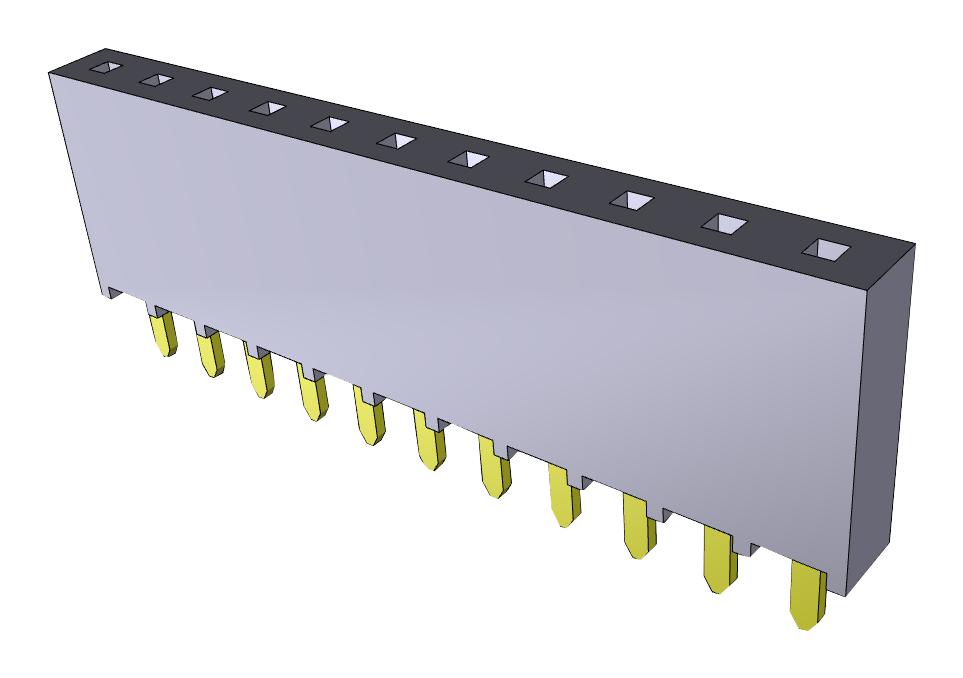

SAMTEC SSW10701GS Square Post Socket Connector
This micro connector features a 0.025-inch square post socket with high-temperature insulator material, phosphor bronze contacts, and gold or tin plating options. Designed for reliable electrical connections, it supports current ratings up to 4.7A per pin, with a temperature range from -55°C to +105°C. Suitable for through-hole applications, the connector offers various options for pin counts, right-angle configurations, and plating finishes. It ensures durable, high-quality performance in demanding industrial and electronic systems, providing excellent contact integrity and ease of assembly for electronics, automation, and control equipment.
SAMTEC SSW10701GS Square Post Socket Connector Specifications:
- Insulator Material: Black High Temperature
- Contact Material: Phosphor Bronze
- Plating Options: Gold (0.51 μm) or Tin
- Current Rating: 4.7A per pin
- Temperature Range: -55°C to +105°C
- Pin Count Options: Up to 36 pins
- Size: 0.025 inch square post
- Mounting Style: Through-hole
- Connector Type: Socket
- Application: Industrial electronics, automation systems, electronic device connections
- Max Insertion Force: 22-24 oz
- Available Configurations: Right-angle, single, double, triple
- Lead-Free Solderable: Yes
- Certifications: Not specified
- Other features: Gold flash on tail, durable contact plating
Buy the Samtec Series Square Post Socket Connector: SSW10701GS
Purchase the Square Post Socket Connector online today to guarantee durable, high-quality electrical connections for your industrial, automation, or electronic projects. Featuring a 0.025-inch square post size, high-temperature insulator, and options for gold or tin plating, this connector supports current ratings up to 4.7A per pin and operates over a broad temperature range. Its through-hole mounting design ensures robust assembly and reliable performance. Ideal for demanding environments, order now to experience quick delivery and excellent customer support for all your electronic connectivity needs.
Get Samtec SSW-116-03-L-T today—built for precision and long-lasting durability in industrial electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SSW10701GS?
You can click on the BUY or RFQ button to purchase SSW10701GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10701GS?
You can download the SSW10701GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10701GS?
SAMTEC
