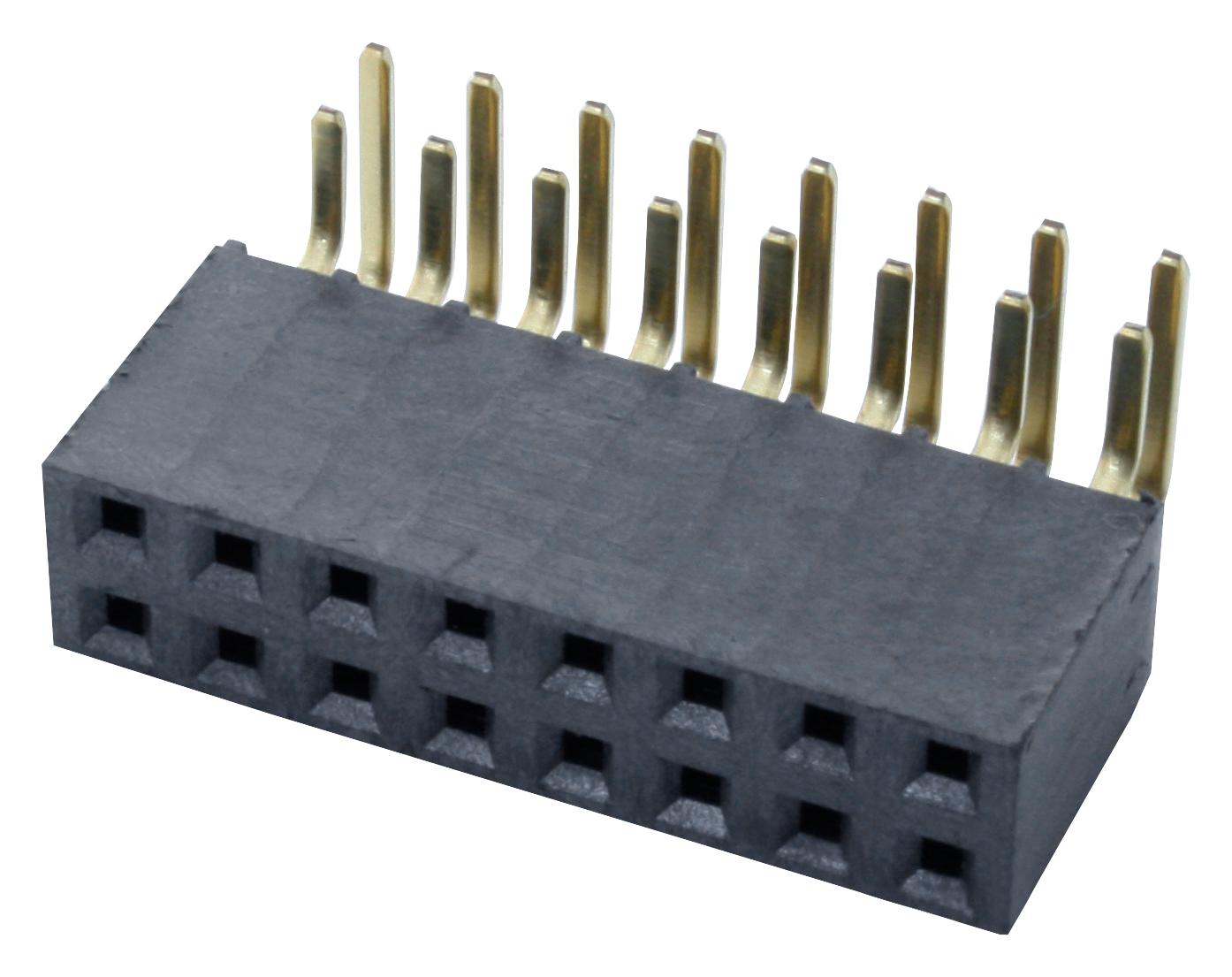

SAMTEC SSW10802GDRA PCB Socket
This through-hole 2.54 mm (.100 inch) pitch socket features a black liquid crystal polymer insulator and phosphor bronze contact material. It has gold or tin plating options, with a current rating of 6.3 A per pin and a voltage rating of 465 VAC / 655 VDC. Designed for reliable PCB connections, it offers high-temperature operation from -55°C to +125°C with gold plating and -55°C to +105°C with tin. The sockets are RoHS compliant, available in various row options, and suitable for power and signal applications in demanding electronic assemblies.
SAMTEC SSW10802GDRA PCB Socket Specifications:
- Pitch: 2.54 mm (.100 inch)
- Insulator Material: Black Liquid Crystal Polymer or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin with Ni overcoat
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Insertion Depth: 3.68 mm (Ms), 6.35 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Number of Rows: Single, Double, Triple options
- Suitable for power and signal applications with various rows and lead styles
- Available in straight and right-angle versions
- Compatible with a range of mating connectors like TSW, MTSW, ZW, TSM, and more
Buy the Buy Samtec SSW-125-01-G-S Part Number SSW10802GDRA Online
Purchase this high-quality PCB socket online to ensure reliable connections for power and signal applications. Featuring a 2.54 mm pitch, RoHS compliance, and options for gold or tin plating, it is suitable for demanding environments with operating temperatures up to 125°C. Easy to install with multiple lead and row options, this socket guarantees consistent electrical performance and durability. Trusted by professionals, order now for fast delivery and superior product quality suited for your electronic assembly needs.
Buy Samtec SSW-125-01-G-S now and experience unmatched reliability and high-temperature performance for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSW10802GDRA?
You can click on the BUY or RFQ button to purchase SSW10802GDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10802GDRA?
You can download the SSW10802GDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10802GDRA?
SAMTEC
