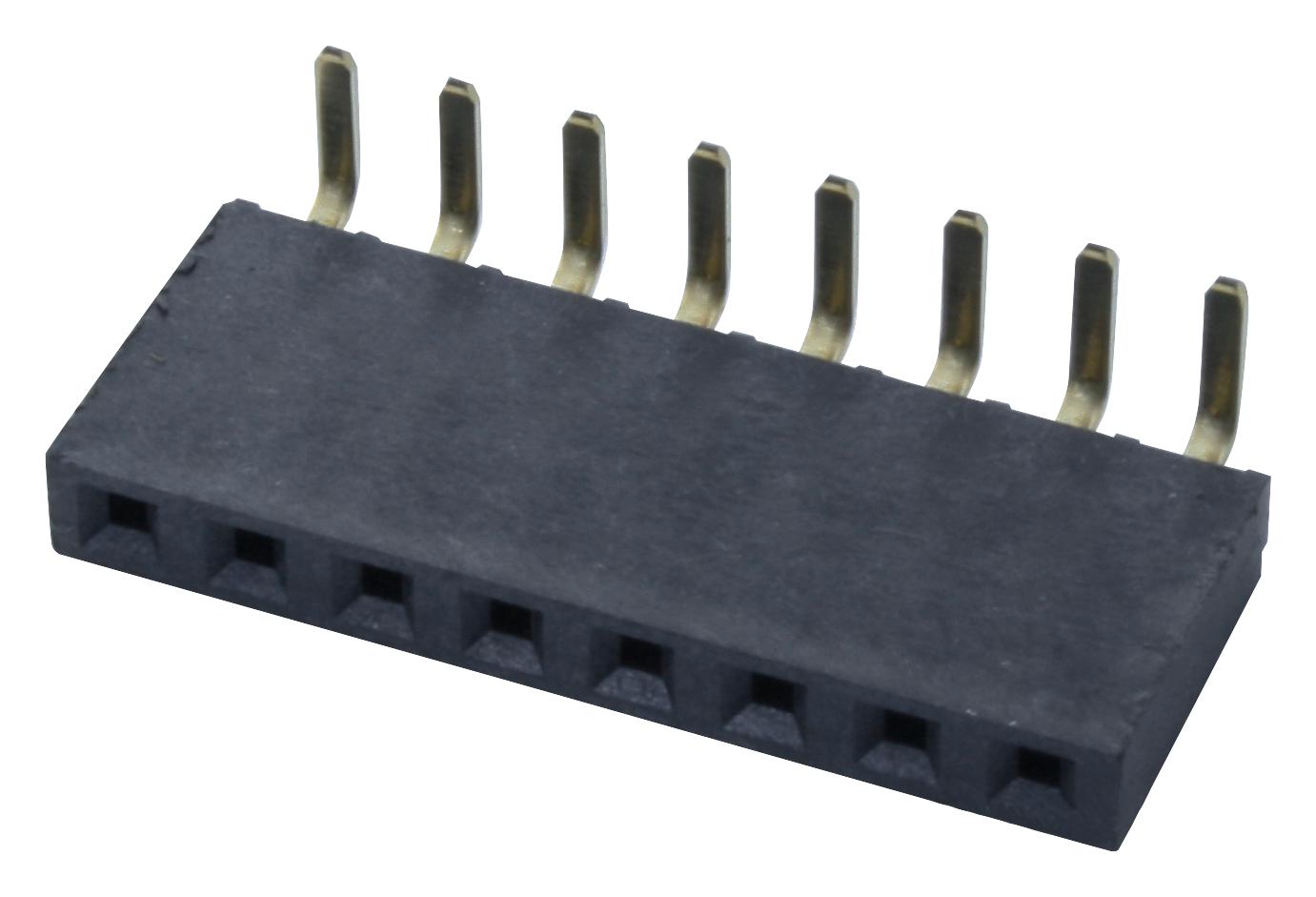

SAMTEC SSW10802GSRA Socket Strip Connectors
The SSW series from Samtec features Tiger Buy socket strips designed for through-hole mounting. These connectors incorporate 0.025-inch square post sockets and are compatible with numerous Samtec series like TSW, MTSW, and TSM. Available in single, dual, or triple row configurations with right-angle options, they support 1 to 50 contacts per row with 2.54mm pitch spacing. Made from black liquid crystal polymer or high-temperature thermoplastic, with phosphor bronze contacts plated with 20 microinches of gold, they operate within -55°C to 125°C, meeting UL and CSA safety standards for reliable and durable electrical connections.
SAMTEC SSW10802GSRA Socket Strip Connectors Specifications:
- Connector type: Through-hole socket strip
- Contact Material: Phosphor Bronze
- Plating: 20 microinches of Gold
- Insulator Material: Black Liquid Crystal Polymer or High-Temperature Thermoplastic
- Operation Temperature Range: -55°C to +125°C
- Pitch Spacing: 2.54mm
- Number of Contacts: 1 to 50 per row
- Configuration: Single, Dual, or Triple Row
- Mounting: Through-hole
- Standards: UL, CSA compliant
- Compatible Series: TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH, HTSS
- Maximum current per pin: 6.3A
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec Series SSW Socket Strip: SSW10802GSRA
Enhance your electronic connections with Samtec's SSW series socket strips, offering 2.54mm pitch, through-hole mounting, and gold-plated contacts. Suitable for various multi-row configurations, including right-angle options, these connectors operate reliably in temperatures from -55°C to 125°C. Constructed from high-quality insulators like liquid crystal polymer and phosphor bronze contacts, they meet UL and CSA safety standards. Perfect for projects demanding durable, high-performance electrical connections, available to purchase online now for quick delivery and seamless integration into your designs.
Order your Samtec Series SSW socket strip today and enjoy reliable, high-quality connections for your electronic projects with durable gold-plated contacts.
Frequently Asked Questions
Where can I buy SAMTEC SSW10802GSRA?
You can click on the BUY or RFQ button to purchase SSW10802GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10802GSRA?
You can download the SSW10802GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10802GSRA?
SAMTEC
