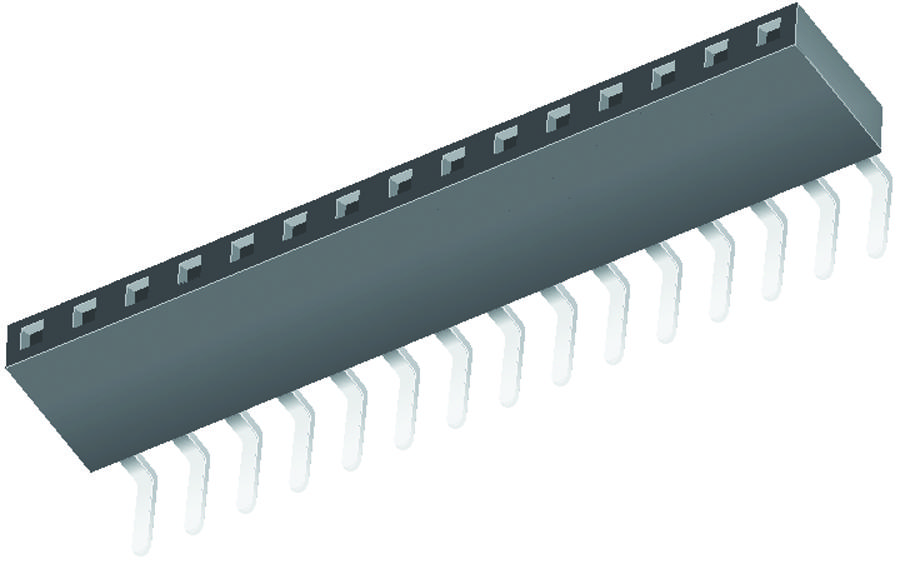

SAMTEC SSW10802TSRALL through-hole socket
The product is a through-hole .025 inch square post socket versatile enough for use in various electronic assemblies. Made from black Liquid Crystal Polymer or high-temperature thermoplastic insulators, with phosphor bronze contacts plated in gold or tin. It supports current ratings up to 6.3 A per pin and voltage ratings of 465 VAC / 655 VDC. Designed for temperatures from -55°C to +125°C depending on plating, with standard insertion force of 125 grams and multiple lead options including straight and right-angle versions. Compatible with a range of mates for flexible configurations.
SAMTEC SSW10802TSRALL through-hole socket Specifications:
- Insulator Material: Liquid Crystal Polymer or high-temperature thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over Ni
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Standard Force: 125 grams
- RoHS Compliant: Yes
- Row Options: Single, Double, Triple
- Lead Options: Straight, Right-Angle, with various lead styles
- Maximum Pins: 36
- Compatible Mates: TSW, MTSW, MTLW, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Samtec Series SSW Through-Hole Square Post Socket: SSW10802TSRALL
Purchase the Samtec through-hole socket online today to benefit from high-quality materials, versatile lead options, and robust current and voltage ratings. Designed for reliable electrical connections in various electronic assemblies, it features durable phosphor bronze contacts with gold or tin plating, suitable for high-temperature environments. Compatible with multiple mate options and available in straight or right-angle configurations, this socket ensures flexibility and long-term performance. Order now to enhance your project with dependable, RoHS-compliant connectors.
Buy Samtec SSW10802TSRALL now and experience unmatched reliability and performance in electronic connections with versatile configurations and high current capacity.
Frequently Asked Questions
Where can I buy SAMTEC SSW10802TSRALL?
You can click on the BUY or RFQ button to purchase SSW10802TSRALL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10802TSRALL?
You can download the SSW10802TSRALL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10802TSRALL?
SAMTEC
