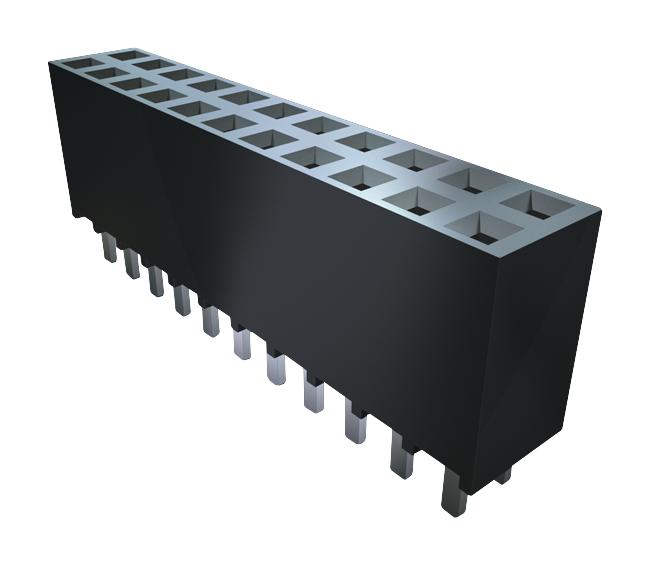

SAMTEC SSW10822GDVS Square Post Socket
The SMT .025° square post socket features black LCP insulator material and phosphor bronze contacts with gold or tin plating, designed for reliable electrical connections in industrial electronics. It supports up to 6.4A current rating, with an operating temperature range from -55°C to +105°C. The socket has an insertion depth of 0.145" to 0.250" and a maximum of 100 insertion cycles. RoHS compliant and available with lead-free solderable options, this component offers high durability and performance for demanding applications.
SAMTEC SSW10822GDVS Square Post Socket Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black LCP
- Plating: Au or Tin
- Current Rating: 6.4A
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temp Range: -55°C to +105°C
- Insertion Depth: 0.145" to 0.250"
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Plating Thickness: 0.00127 mm (50 μm) Ni with gold options
- Dimensions: 6.50 mm diameter, 2.54 mm pitch, coplanarity 0.10 mm
- Additional options include notched or non-standard lengths, and non-returnable styles due to technical progress
Buy the Samtec SSW10822GDVS – Reliable Square Post Socket for Industrial Applications
Purchase the Square Post Socket now to ensure high reliability and performance in your electronic assemblies. This component features durable phosphor bronze contacts with gold or tin plating, supporting up to 6.4A current, and offers a broad operating temperature range from -55°C to +105°C. Its RoHS compliance and lead-free solderable options make it suitable for environmentally conscious manufacturing. With a maximum of 100 insertion cycles and easy mounting, this socket is ideal for industrial electronics that demand precision, durability, and safety standards while maintaining excellent electrical connectivity in various applications.
Get Samtec SSW10822GDVS today—built for precision and long-lasting durability in industrial electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW10822GDVS?
You can click on the BUY or RFQ button to purchase SSW10822GDVS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10822GDVS?
You can download the SSW10822GDVS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10822GDVS?
SAMTEC
