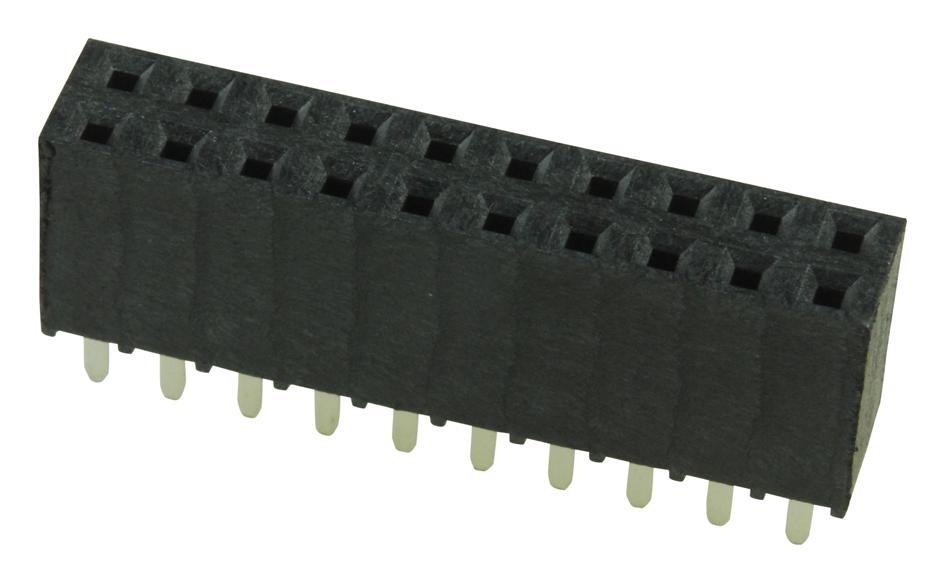

SAMTEC SSW11001LD Socket Strip
The SSW series from Samtec are Tiger Link socket strips designed for through-hole mounting. These connectors feature 0.025-inch (0.635mm) square post sockets and are compatible with various Samtec series connectors such as TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH, and HTSS. Available in single, dual, and triple row configurations (-S, -D, -T), along with options (-P, -Q), these socket strips have 2.54mm pitch spacing, accommodating 1 to 50 contacts per row. They operate from -55°C to 125°C, with gold-plated contacts for reliability, and insulators made of black liquid crystal polymer or high-temperature thermoplastic, making them ideal for industrial use.
SAMTEC SSW11001LD Socket Strip Specifications:
- Contact Material: Phosphor bronze
- Plating: Gold (0.25 um) on contact, gold flash on tail
- Insulator Material: Black liquid crystal polymer or high-temperature thermoplastic
- Temperature Range: -55°C to 125°C
- Number of Rows: Single, dual, triple (-S, -D, -T)
- Pitch: 2.54mm
- Contact Count per Row: 1 to 50
- Operating Standards: UL Listed, CSA Certified
- Current Rating: 4.7 Amperes per pin
- Number of Mating Cycles: 100
- Compatible Series: TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH, HTSS
- Lead-Free: Yes, solderable
Buy the Samtec SSW Series Socket Strip Part Number SSW11001LD
Enhance your industrial connections with Samtec socket strips from the SSW series. Featuring 0.025-inch square post sockets, these strips support multiple configurations, are gold-plated for optimal conductivity, and operate reliably from -55°C to 125°C. Made with high-quality insulators of liquid crystal polymer or high-temperature thermoplastic, they are suitable for demanding industrial environments. Easy to install, compliant with UL and CSA standards, and designed for up to 100 mating cycles, they ensure durable, efficient electrical connections for your applications.
Buy Samtec SSW socket strips now and experience unmatched reliability and performance in your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SSW11001LD?
You can click on the BUY or RFQ button to purchase SSW11001LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11001LD?
You can download the SSW11001LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11001LD?
SAMTEC
