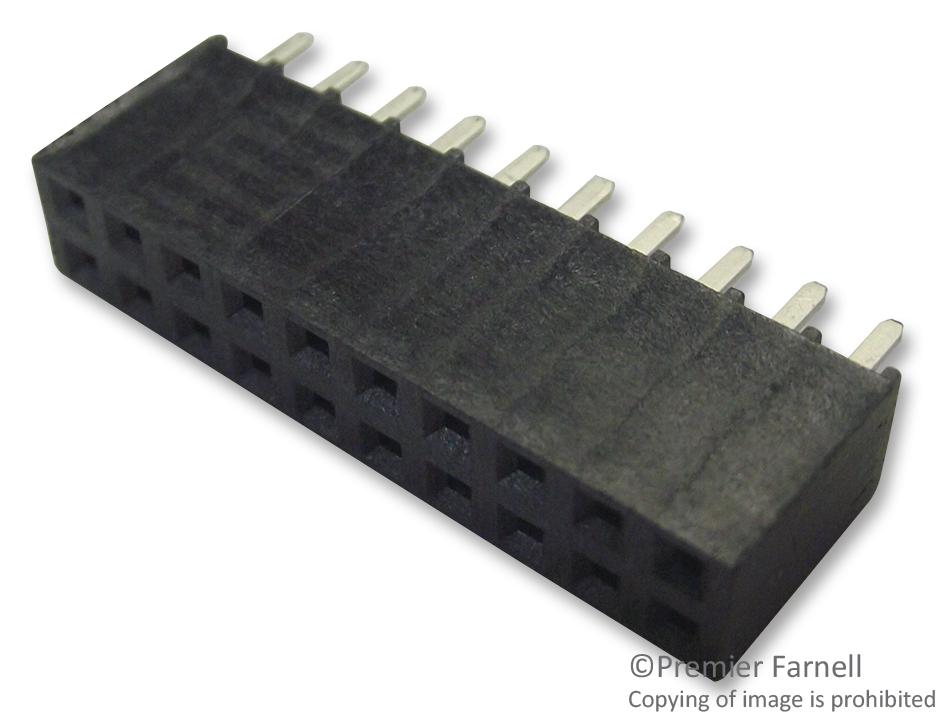

SAMTEC SSW11001TD Power Socket
The SSW series through-hole socket features a black Liquid Crystal Polymer insulator, phosphor bronze contacts, and gold or tin plating, offering high current capacity of up to 6.3 A per pin with a voltage rating of 465 VAC or 655 VDC. Designed for reliable insertion with standard force of 125 grams, it operates from -55°C to +125°C depending on plating. Suitable for power applications in electronic assemblies, it is RoHS compliant and available with various row options, contact finishes, and custom lengths, ensuring flexibility in high-temperature and demanding environments.
SAMTEC SSW11001TD Power Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Force: Standard 125 grams (4.4 N)
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Contact Length Options: 3.68 mm to 6.35 mm
- RoHS Compliance: Yes
- Support for multiple row options including single, double, and triple
- Suitable for power and signal applications in high-temperature environments
- Available with various plating options including Gold Flash, Matte Tin
- Connectors are built to Samtec’s specifications, with some non-standard, non-returnable options
Buy the Samtec Series SSW Through-Hole Socket: SSW11001TD
Purchase the Samtec SSW11001TD power socket online today to ensure high current capacity, reliable insertion force, and exceptional thermal performance. Designed with phosphor bronze contacts and available with gold or tin plating, this socket provides excellent conductivity and durability for demanding electronic systems. Its high-temperature insulator material and RoHS compliance make it ideal for modern power and signal applications. Secure your order now and benefit from fast shipping, enhanced product quality, and technical support tailored to your needs.
Get Samtec SSW11001TD today—built for power, high temperature, and reliable electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW11001TD?
You can click on the BUY or RFQ button to purchase SSW11001TD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11001TD?
You can download the SSW11001TD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11001TD?
SAMTEC
