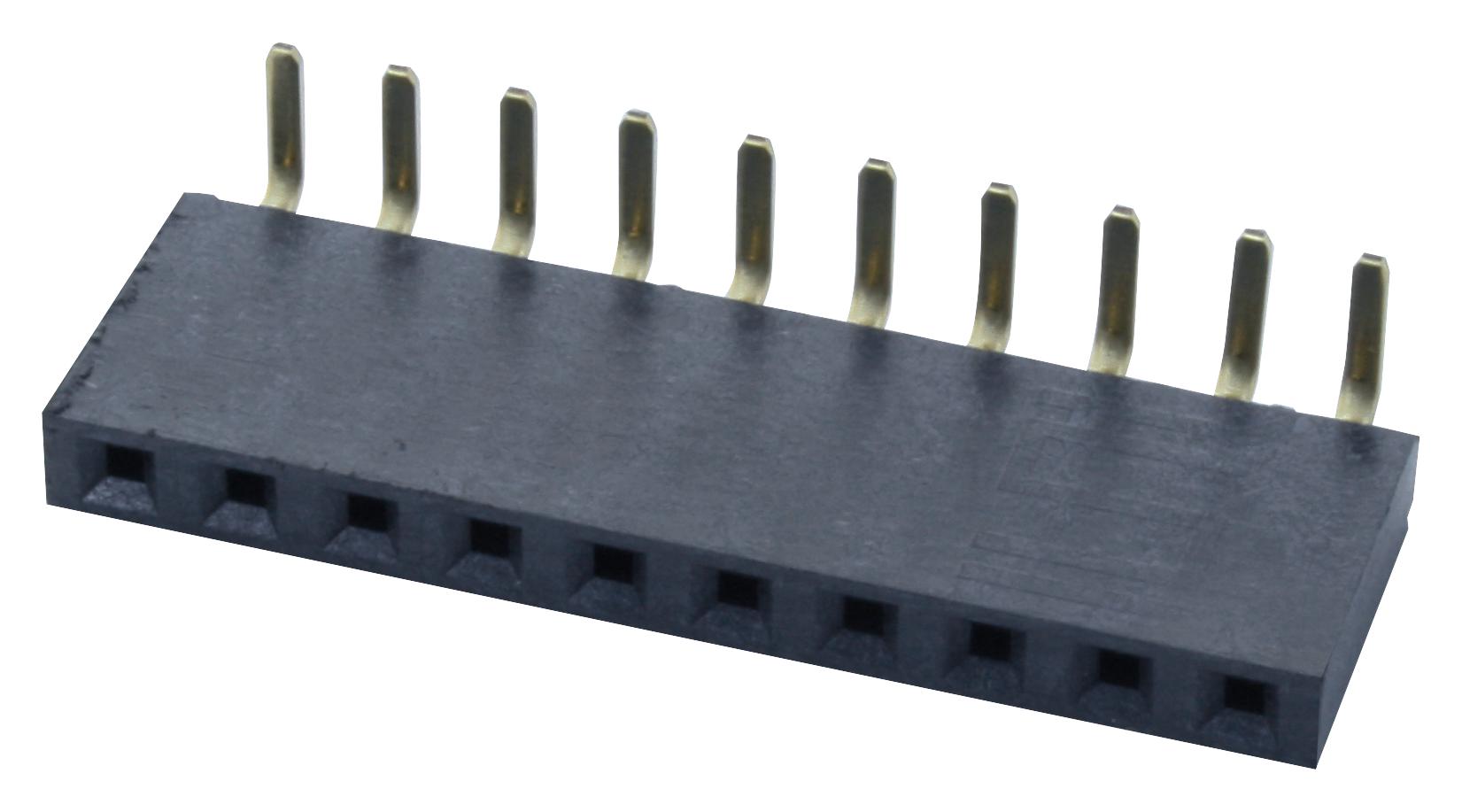

SAMTEC SSW11002GSRA Socket Strip
The SSW series from Samtec features versatile through-hole socket strips with 0.025-inch square post sockets, compatible with multiple connector series. Designed for reliable connections, these sockets come in single, dual, or triple-row configurations, and are suitable for a range of industrial, automation, and electronic applications. Made from black liquid crystal polymer or high-temperature thermoplastic insulators and phosphor bronze contacts, with options for gold or tin plating. They support operating temperatures from -55°C to 125°C, rated for up to 6.3 A, with a 2.54mm pitch spacing, ensuring durable and high-performance connectivity solutions.
SAMTEC SSW11002GSRA Socket Strip Specifications:
- Socket type: through-hole, square post, 0.025" (0.635mm)
- Number of rows: single, dual, triple
- Contact material: phosphor bronze with gold or tin plating
- Insulator material: black liquid crystal polymer or high-temperature thermoplastic
- Operating temperature range: -55°C to 125°C
- Current rating: 6.3 A per pin
- Voltage rating: 465 VAC / 655 VDC
- Pitch spacing: 2.54mm
- Max contacts per row: 50
- RoHS compliant: Yes
- Solder tail: standard or gold flash
- Compatible with: TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Buy Samtec SSW Series Socket Strips Part Number SSW11002GSRA Online
Purchase the Samtec SSW series socket strip online today to guarantee high-quality, reliable connections for your electronic assembly or industrial control systems. These socket strips feature 0.025-inch square post sockets, available in single, dual, or triple-row configurations, with options for gold or tin plating. Made from high-temperature thermoplastic or liquid crystal polymer insulators, they operate efficiently within a temperature range of -55°C to 125°C. With a 2.54mm pitch spacing and a current rating of 6.3 A, these socket strips offer durability and performance for demanding applications. Shop now and get dependable connectivity delivered quickly!
Order your Samtec Series SSW11002GSRA socket strip today and ensure reliable connectivity for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSW11002GSRA?
You can click on the BUY or RFQ button to purchase SSW11002GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11002GSRA?
You can download the SSW11002GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11002GSRA?
SAMTEC
