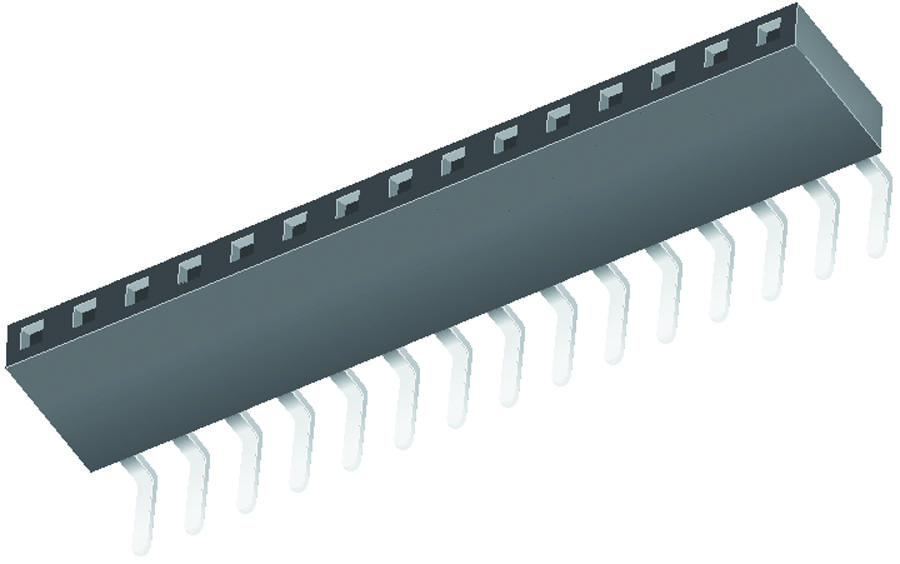

SAMTEC SSW11202FSRA High-Temperature Socket
The SSW11202FSRA is a high-reliability through-hole socket with a 0.025-inch square post design,made from black liquid crystal polymer insulator material or high-temperature thermoplastic. It features phosphor bronze contacts with gold and nickel plating, capable of handling 6.3 A per pin and with a voltage rating of 465 VAC/DC. Designed for 2-54 pin configurations with a standard insertion force of 100 grams, it supports a temperature range from -55°C to +105°C. Suitable for connecting surface-mount or through-hole applications in electronic systems, ensuring secure, high-quality electrical connections with RoHS compliance.
SAMTEC SSW11202FSRA High-Temperature Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High-Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold (Au) over Nickel (Ni), 50 microinch (1.27 μm) minimum
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Temperature Range: -55°C to +105°C
- Insertion Depth: 3.68 mm (0.145 inches), 6.35 mm (0.25 inches)
- Number of Pins: 2 to 54 positions
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Body Dimensions: Square post of 0.025 inches (0.635 mm)
- Weight: Approximately 25 grams (4.4 N) for standard models
- Standards & Recognitions: See www.samtec.com/quality for details
Buy the Samtec Series SSW Sockets: SSW11202FSRA
Purchase your Samtec Series SSW11202FSRA high-reliability through-hole socket online today to ensure secure electrical connections in your electronic systems. This socket features a square post design with high-quality phosphor bronze contacts plated with gold and nickel, capable of handling 6.3 A per pin and rated for 465 VAC/DC. Its insulator is made from durable black liquid crystal polymer or high-temperature thermoplastic, supporting temperatures from -55°C to +105°C. RoHS compliant, lead-free, and designed for easy installation, it’s ideal for demanding electronic applications requiring precision and reliability with quick online ordering.
Order your Samtec Series SSW11202FSRA high-reliability through-hole socket today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy SAMTEC SSW11202FSRA?
You can click on the BUY or RFQ button to purchase SSW11202FSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11202FSRA?
You can download the SSW11202FSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11202FSRA?
SAMTEC
