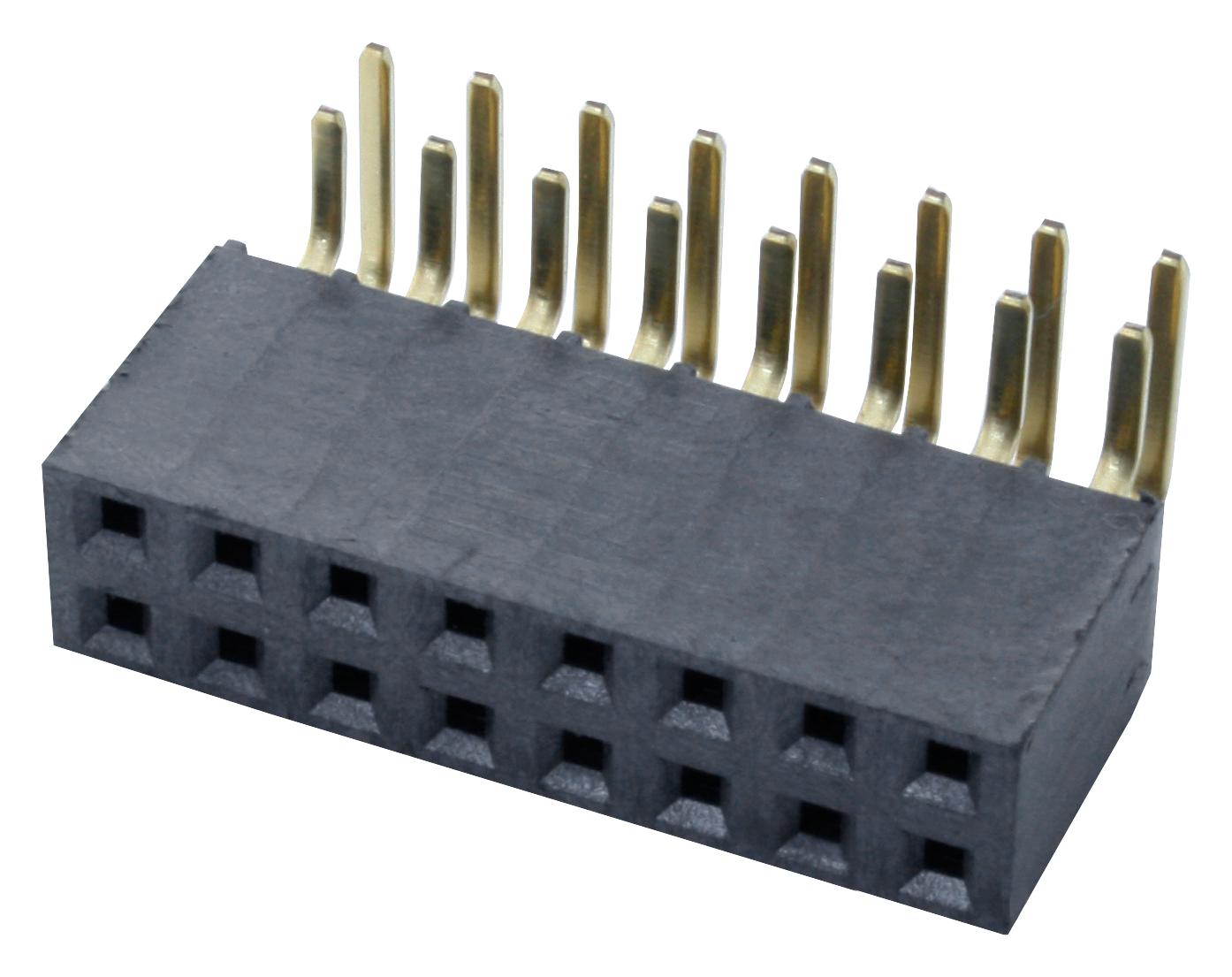

SAMTEC SSW11202SDRA Square Post Socket
The SSW11202SDRA is a high-temperature, through-hole square post socket designed for reliable electrical connections in electronic systems. Made of black liquid crystal polymer or high-temperature thermoplastic insulators, it features phosphor bronze contacts with gold or tin plating for excellent conductivity and corrosion resistance. Capable of handling currents up to 6.3 A per pin at a voltage rating of 465 VAC / 655 VDC, it supports operating temperatures from -55°C to +105°C. Its compact design includes precise pin centers and insertion depths, ensuring secure and easy assembly for demanding industrial applications.
SAMTEC SSW11202SDRA Square Post Socket Specifications:
- Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +105°C
- Insulation and Body Material: Liquid Crystal Polymer or Thermoplastic
- Insertion Depth: 3.68 mm to 6.35 mm
- Pin Centers: 2.54 mm (0.100 inches), compatible with standard PCB layouts
- RoHS Compliant: Yes
- Lead-Free Solderability: Yes
- Dimensions vary with model, typical length approximately 4.95 mm
- Maximum number of positions: 36 pins
- RoHS compliant, suitable for lead-free applications
Buy the Samtec Series SSW Electronic Connector: SSW11202SDRA
Enhance your electronic assemblies with the high-temperature, reliable square post socket designed for secure connections in industrial applications. Made from high-quality materials such as liquid crystal polymer or thermoplastic, it features phosphor bronze contacts with gold or tin plating for excellent conductivity. Capable of handling 6.3 A per pin at voltages up to 465 VAC / 655 VDC, it supports operating temperatures from -55°C to +105°C. Its precise dimensions and RoHS compliance make it ideal for demanding industrial environments. Order online today for fast delivery and optimal performance.
Buy Samtec SSW11202SDRA now and experience unmatched reliability and performance in high-temperature electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW11202SDRA?
You can click on the BUY or RFQ button to purchase SSW11202SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11202SDRA?
You can download the SSW11202SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11202SDRA?
SAMTEC
