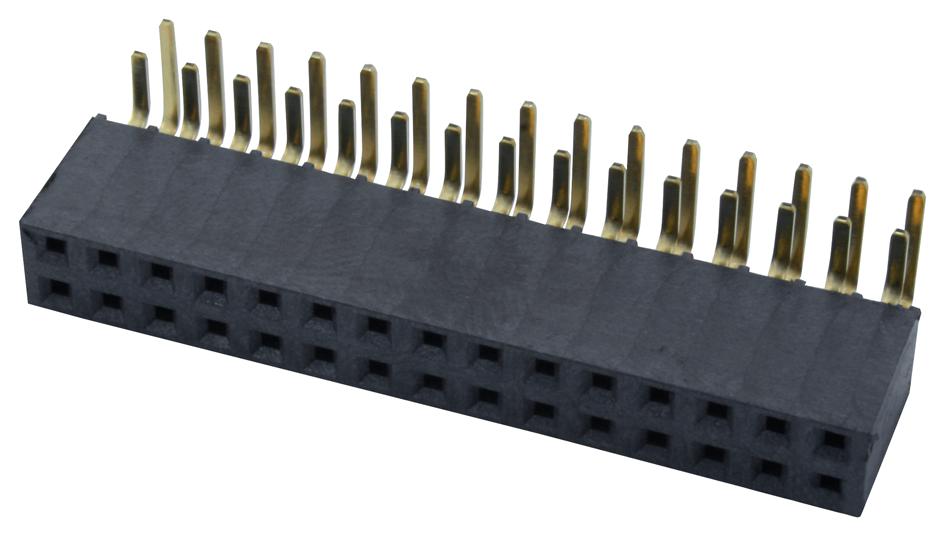

SAMTEC SSW11502GDRA Through-Hole Socket
This through-hole contact socket features a black Liquid Crystal Polymer insulator and phosphor bronze contact material with gold or tin plating. It operates within a temperature range of -55°C to +125°C with gold and -55°C to +105°C with tin, supporting current ratings of up to 6.3A per pin. The socket has an insertion depth of approximately 3.68 mm to 6.35 mm, with standard force of 125 grams. It is RoHS compliant, lead-free, and compatible with a range of mating connectors for high-performance electrical connections, suitable for various industrial and electronic applications.
SAMTEC SSW11502GDRA Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au (Gold) or Sn (Solder Over)
- Current Rating: 6.3 A per pin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Force: Standard 125 grams (4.4 N)
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- Pin Rows: Single, Double, and Triple options
- Row Options: -S and -D row options, wave solder options on -P, -T, -Q
Buy the Samtec Series SSW Through-Hole Socket: SSW11502GDRA
Purchase the Samtec Through-Hole Socket SSW11502GDRA online today and ensure reliable high-current connections for your electronic projects. This socket features a durable phosphor bronze contact with gold or tin plating, supporting up to 6.3A per pin. Its insulator is made from high-temp Liquid Crystal Polymer for excellent thermal stability, working between -55°C and +125°C. Compatible with various connector options, it offers excellent insertion force and complies with RoHS standards. Ideal for industrial, automotive, and electronic applications requiring durability and precision.
Get Samtec SSW11502GDRA today—built for precision and long-lasting durability in high-performance electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW11502GDRA?
You can click on the BUY or RFQ button to purchase SSW11502GDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW11502GDRA?
You can download the SSW11502GDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW11502GDRA?
SAMTEC
