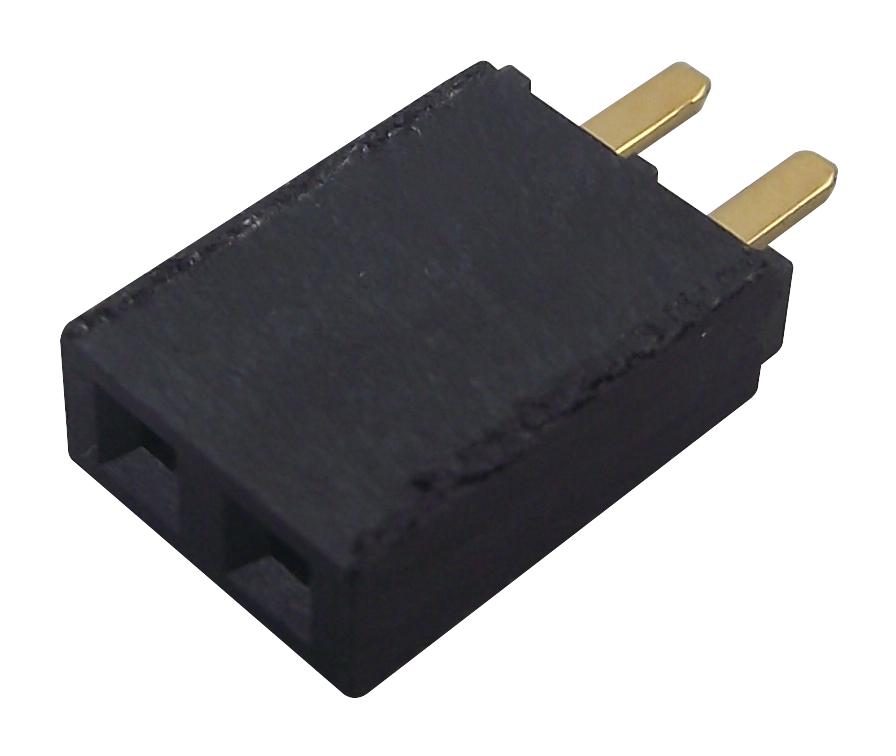

SAMTEC SSW12402GS Through-Hole Socket
This through-hole socket features a phosphor bronze contact material with gold or tin plating, designed for high-temperature applications from -55°C to +125°C. It supports a current rating of 6.3A per pin at 465VAC/655VDC, and features a black liquid crystal polymer insulator. With a standard insertion force of 125 grams, it is RoHS compliant and suitable for various mating options including TSW, MTSW, and ZW. Its robust construction and high-performance specifications make it ideal for reliable electrical connections in demanding environments.
SAMTEC SSW12402GS Through-Hole Socket Specifications:
- Material: Phosphor Bronze
- Plating: Gold or Tin
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature: -55°C to +125°C with Gold; -55°C to +105°C with Tin
- Maximum Insertion Force: 125 grams (4.4 N)
- RoHS Compliance: Yes
- Supports multiple mating options including TSW, MTSW, ZW
- Contact thickness: 20 p" (0.51 um) Gold on contact, gold flash on tail
- Dimensions: Varies, suitable for through-hole mounting
- Wave Solderable: Yes
- Certifications: As per Samtec specifications
- Lead-Free Solderable: Yes
Buy the Buy Samtec SSW12402GS Part Number SSW12402GS Online
Purchase the high-quality through-hole socket featuring phosphor bronze contacts with gold or tin plating from Samtec online today. Designed to operate reliably from -55°C to +125°C, it supports up to 6.3A at 465VAC/655VDC. Its robust construction ensures durability in demanding environments, offering excellent contact stability and RoHS compliance. With various mating options and wave solderability, this socket is perfect for engineers seeking a dependable connection solution in industrial and electronic applications. Buy online now for prompt delivery and technical support.
Buy Samtec SSW12402GS now and experience unmatched reliability and high-temperature electrical performance.
Frequently Asked Questions
Where can I buy SAMTEC SSW12402GS?
You can click on the BUY or RFQ button to purchase SSW12402GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW12402GS?
You can download the SSW12402GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW12402GS?
SAMTEC
