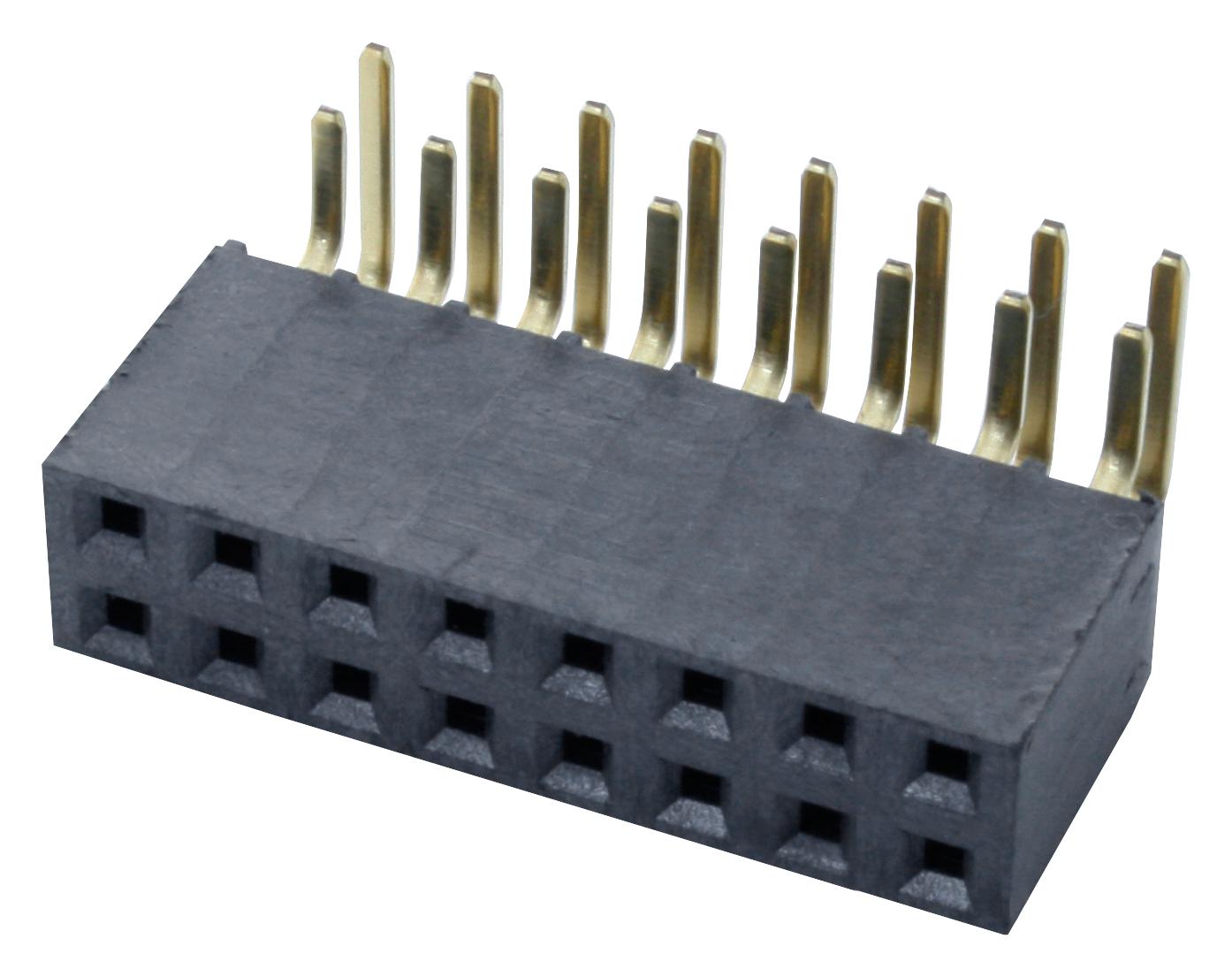

SAMTEC SSW13602SDRA Through-Hole Socket
This through-hole socket features a black liquid crystal polymer insulator, phosphor bronze contacts with gold or tin plating, and supports high temperature ranges from -55°C to +125°C. It offers a current rating of 6.3 A per pin at 465 VAC/DC with an insertion depth of up to 6.35 mm. Suitable for power and signal applications, it ensures RoHS compliance and is available in various lead styles, plating options, and configurations, providing reliable electrical connections in demanding environments.
SAMTEC SSW13602SDRA Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50 yt" Ni underlayer
- Current Rating: 6.3 A per pin at 465 VAC / 655 VDC
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Standard Force: 125 grams (4.4 N)
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Available Options: With Notch or different plating, straight or right-angle versions
- Compatible Mates: TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Samtec Series SSW: Through-Hole Socket SSW13602SDRA
Purchase the Samtec Through-Hole Socket SSW13602SDRA online today for reliable, high-temperature electrical connections. Designed with phosphor bronze contacts, gold or tin plating, and insulators made from high-performance thermoplastics, this socket ensures durability in various applications. Its versatile design includes multiple lead styles, plating options, and insertion depths, making it suitable for power and signal transmission. Enjoy quick, secure online ordering and ensure your projects have the highest quality components for long-lasting performance.
Get Samtec SSW13602SDRA today—built for high-current power connections and reliable signal contacts in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC SSW13602SDRA?
You can click on the BUY or RFQ button to purchase SSW13602SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW13602SDRA?
You can download the SSW13602SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW13602SDRA?
SAMTEC
