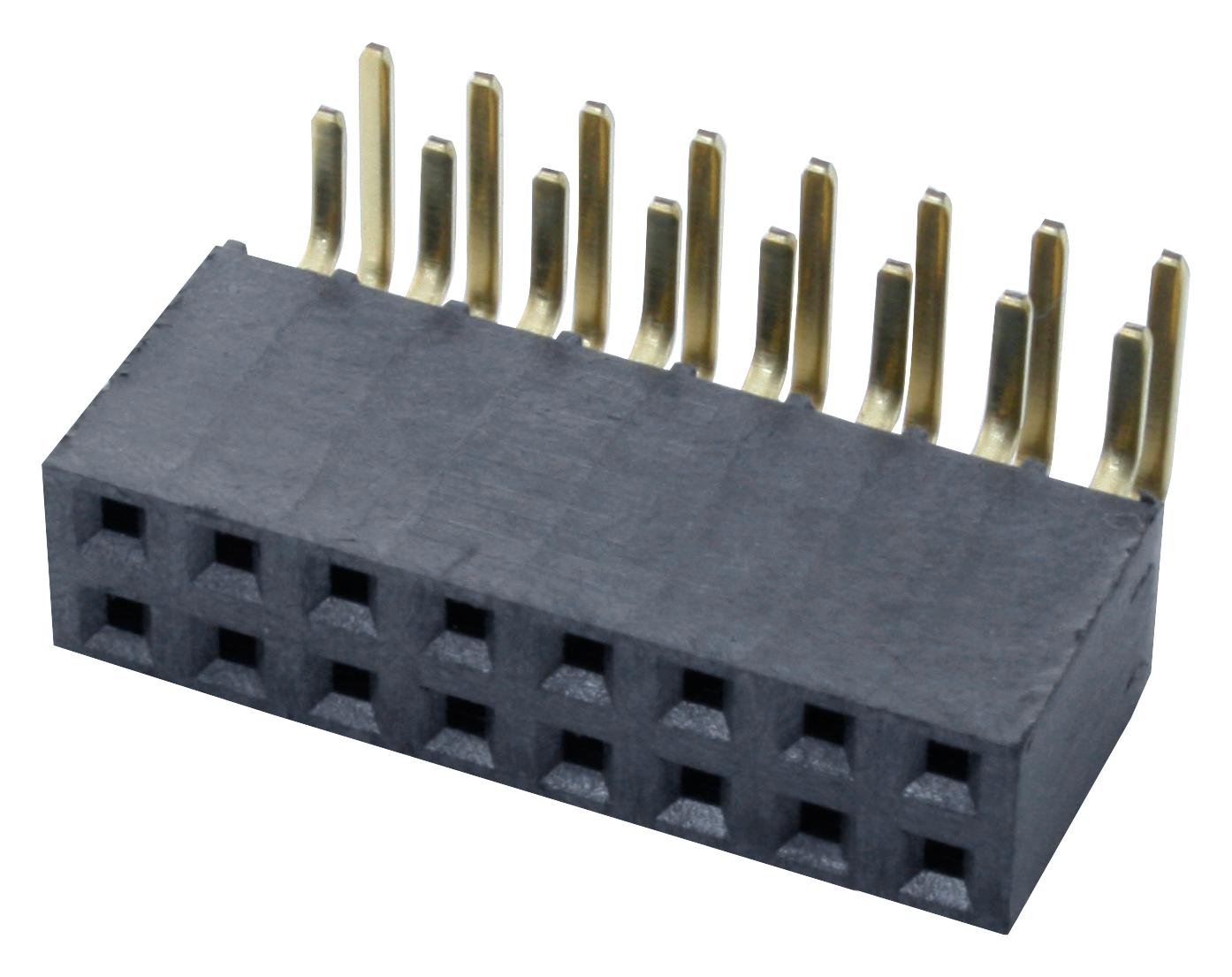

SAMTEC SSW13702GDRA Through-Hole Socket
The SSW13702GDRA is a high-performance through-hole socket designed for electronic connections. Made from black liquid crystal polymer or high-temperature thermoplastic insulators and phosphor bronze contacts, it features gold or tin plating for reliable conductivity. With a current rating of 6.3 A per pin and a voltage rating of 465 VAC / 655 VDC, it supports temperatures from -55°C to +125°C with gold plating. The socket offers multiple row options, insertion depths, and plating choices, ideal for complex electronic applications requiring durable, RoHS-compliant connections.
SAMTEC SSW13702GDRA Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High-Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm (Ms), 6.35 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Supported Rows: Single, Double, Triple options
- Pin Options: Straight, Right-Angle versions
- Notch Option Available, Compatible with multiple mate connectors
- Shell Options: Standard, non-standard lengths, and special options available
- Wave solder compatible, broader applications in electronic assemblies
Buy the Buy Samtec SSW13702GDRA Part Number SSW13702GDRA Online
Purchase the Samtec Through-Hole Socket SSW13702GDRA online today and experience dependable electronic connectivity. Crafted with high-quality materials like phosphor bronze and liquid crystal polymer insulators, this durable socket supports high current and voltage ratings, making it ideal for complex and demanding electronic systems. Its RoHS compliance and lead-free solderability ensure eco-friendly and safe installation. With multiple row and pin options, adjustable depths, and plated contacts, it guarantees versatile and secure connections. Shop now for quick delivery and technical support for your electronic assembly needs.
Order your Samtec Series SSW13702GDRA socket today and ensure reliable, high-temperature connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSW13702GDRA?
You can click on the BUY or RFQ button to purchase SSW13702GDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW13702GDRA?
You can download the SSW13702GDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW13702GDRA?
SAMTEC
