SAMTEC SSW13801SS Power Socket
This through-hole socket features a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating, supporting currents up to 6.3 A and voltage ratings of 465 VAC / 655 VDC. It operates within -55°C to +125°C and is RoHS compliant, suitable for high-temperature and power applications. Its construction includes a 2.54 mm (.100 inch) pin pitch, standard insertion force, and optional lead-free soldering. Compatible with various mating components, it is ideal for reliable electrical connections in demanding environments.
SAMTEC SSW13801SS Power Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High-Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin with Ni barrier
- Current Rating: 6.3 A
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insert Depth: 3.68 mm to 6.35 mm
- Standard Insertion Force: 125 grams (4.4 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pin Pitch: 2.54 mm (.100 inch)
- RoHS Compliance: Yes
- Mates With: TSW, MTSW, TSM, ZW, ZSS, TSSH, HTSS
- Length Options: From 0.229 inches to over 0.787 inches depending on configuration
- Design Options: Single, Double, and Triple Row, straight or right-angle version, various plating options
- Certifications: RoHS compliant, meets industry standards

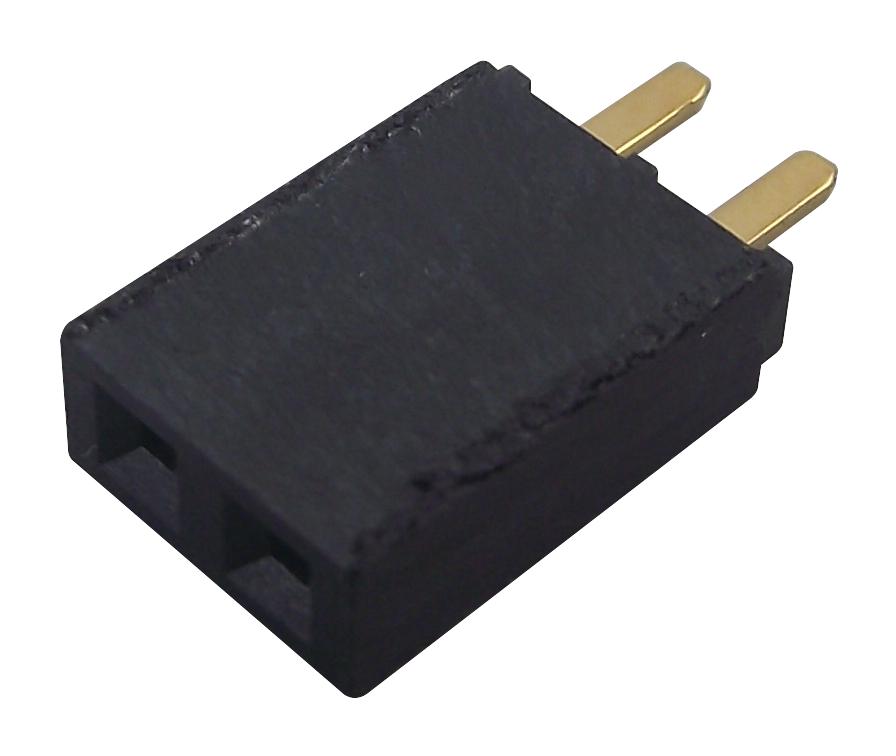

Buy the Samtec Series SSW Through-Hole Socket: SSW13801SS
Purchase the Samtec SSW13801SS power socket online today for high-temperature and high-current applications. Designed with durable phosphor bronze contacts and versatile plating options, it supports up to 6.3 A and 465 VAC. Its RoHS compliance ensures eco-friendly manufacturing and safe operation in demanding environments. Featuring a compact 2.54 mm pitch, excellent insertion force, and compatibility with various mating components, this socket provides secure electrical connections. Order now for reliable, long-lasting performance suited for power electronic systems and industrial equipment.
Get Samtec SSW13801SS today—built for reliable connection with high-temperature tolerance and robust current capacity.
