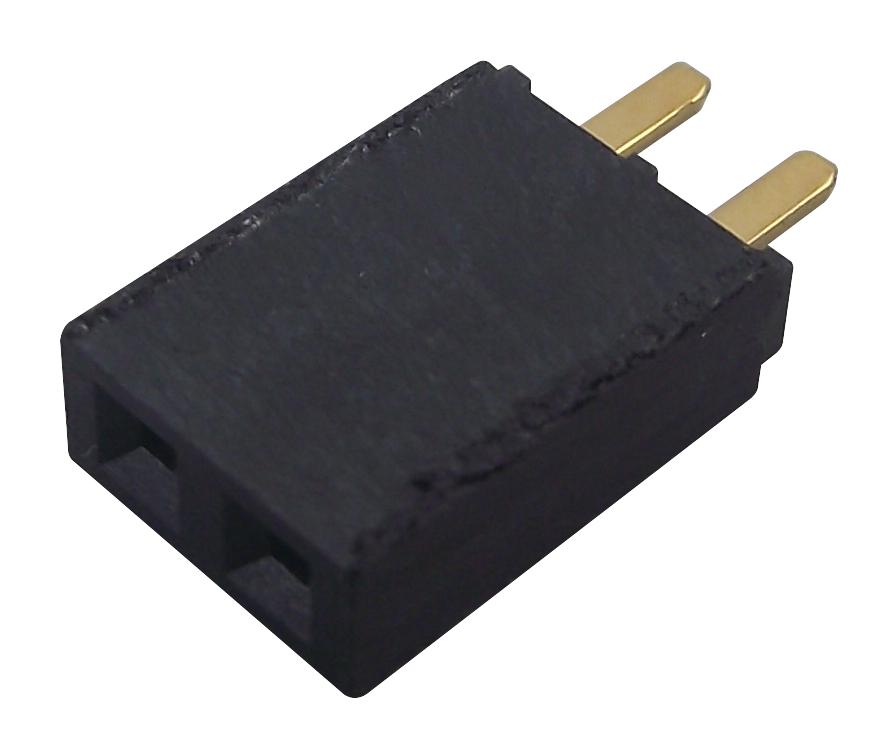

SAMTEC SSW13901SS through-hole socket
This through-hole socket features black liquid crystal polyamide or high-temperature thermoplastic insulators and phosphor bronze contacts with gold or tin plating. It supports voltages up to 465 VAC / 655 VDC and operates within -55°C to +125°C, with options for different heights, plating, and row configurations. Suitable for power and signal applications, it includes varied insertion forces from 125 grams and multiple lead styles, ensuring high reliability and RoHS compliance for demanding electronic assemblies. Designed for versatile use in complex current-carrying connections.
SAMTEC SSW13901SS through-hole socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating Options: Gold or Tin
- Gold Plating Thickness: 50 microinches (1.27 μm) Ni or other variants
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm (standard options)
- Current Rating: 6.3 A per pin
- Standard Insertion Force: 125 grams (4.4 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Available Row Options: Single, Double, Triple, with various styles
- Compatible Mates: TSW, MTSW, MTLW, etc.
- Dimensions: Standard lengths, various heights, suitable for manual or automated wiring
Buy the Samtec Series SSW Through-Hole Socket: SSW13901SS
Enhance your electronic projects with the reliable Samtec Series SSW13901SS through-hole socket. Crafted with high-temperature insulators and durable phosphor bronze contacts, it offers excellent current capacity and voltage ratings, ensuring performance and safety. Its versatility in sizes, plating options, and configurations makes it suitable for a wide range of applications, from power supplies to signal routing. RoHS compliant and easy to solder, this socket guarantees robust, long-lasting connections for demanding electronic and industrial environments. Buy online now for swift delivery and quality assurance.
Order your Samtec Series SSW13901SS through-hole socket today and enhance your electronic assemblies with dependable, high-quality connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW13901SS?
You can click on the BUY or RFQ button to purchase SSW13901SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW13901SS?
You can download the SSW13901SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW13901SS?
SAMTEC
