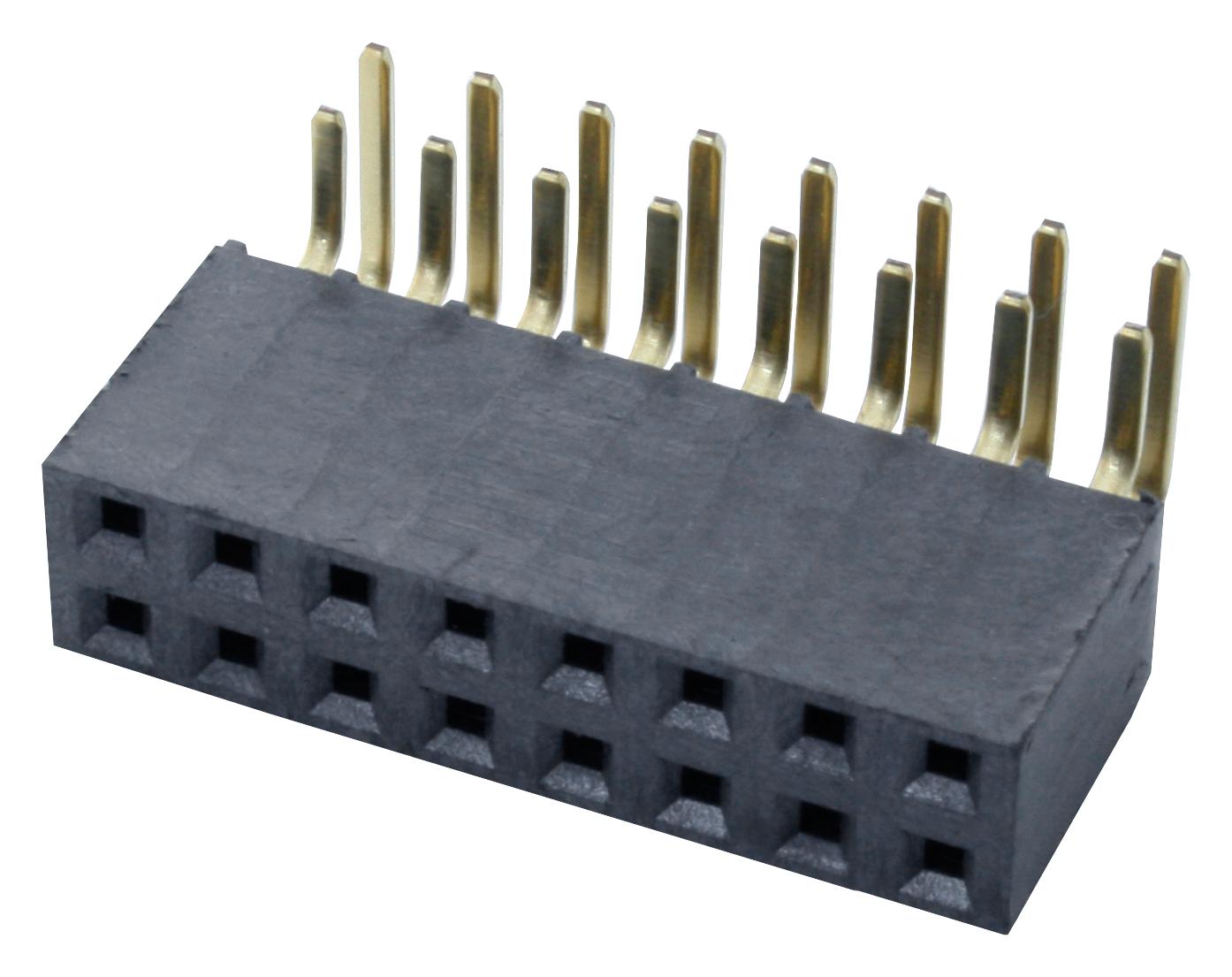

SAMTEC SSW14002SDRA Through-Hole Socket
The product is a through-hole socket with a 2.54 mm (.100 inch) pitch, made of black liquid crystal polymer insulator and phosphor bronze contact material. It features gold or tin plating options, with a current rating of 6.3 A per pin and voltage ratings up to 465 VAC or 655 VDC. Designed for high-temperature environments with an operating temperature of -55°C to +125°C depending on plating, it offers various lead styles, row options, and insertion forces. Suitable for power and signal applications, compliant with RoHS, and designed for reliable connections in industrial electronics.
SAMTEC SSW14002SDRA Through-Hole Socket Specifications:
- Pitch: 2.54 mm (.100 inch)
- Insulator Material: Black Liquid Crystal Polymer or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50 µ
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm (1.45 in) to 6.35 mm (0.25 in)
- Force: Standard= 125 grams (4.4 N), Max= 100 with 10 µ
- RoHS Compliant: Yes
- Lead Options: Single, Double, Triple rows, Straight or Right-Angle
- RoHS and Lead-Free Solderable options available
- Connectors are compatible with mating parts like TSW, MTSW, MTLW, TSM, and ZW series
Buy the Samtec SSW14002SDRA – Reliable Power and Signal Connectors for Industrial Applications
Purchase the Samtec SSW14002SDRA online today and benefit from a high-quality, RoHS compliant through-hole socket designed for reliable power and signal connections. With a 2.54 mm pitch and options for gold or tin plating, this connector ensures durability and excellent performance in demanding industrial environments. Its wide temperature range and multiple lead styles make it versatile for various applications, providing long-lasting, secure connections for power and data transfer. Order now for fast shipping and competitive prices.
Get Samtec SSW14002SDRA today—built for high-temperature environments and ensuring reliable industrial connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW14002SDRA?
You can click on the BUY or RFQ button to purchase SSW14002SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW14002SDRA?
You can download the SSW14002SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW14002SDRA?
SAMTEC
