SAMTEC SSW14002TSRALL High-Temperature Through-Hole Socket
The SSW14002TSRALL is a through-hole socket designed for high-temperature applications, featuring a black liquid crystal polymer insulator and phosphor bronze contacts. It offers gold and tin plating options, current ratings up to 6.3A, and voltage ratings of 465 VAC / 655 VDC. Suitable for power and signal connections, it supports temperatures from -55°C to +125°C with gold plating, ensuring reliability in demanding environments. The socket is RoHS compliant and compatible with various mating connectors including TSW, MTSW, and ZW series, making it ideal for industrial and electronic systems.
SAMTEC SSW14002TSRALL High-Temperature Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer with options for High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold (Au) or Tin (Snover), 50 μ
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm (Ms), 6.35 mm (Normal)
- Standard Force: 125 grams (4.4 N), Max Force: 100 with 10 μ
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible with: TSW, MTSW, MTLW, Ew, ZW, TSS, ZSS, TSM, TSSH, HTSS
- Max pins: 36
- Row options: -S (single), -P (double), -D (triple)
- Lead style options: Straight or Right-Angle
- Notch options available; some lengths/options are non-standard and non-returnable.

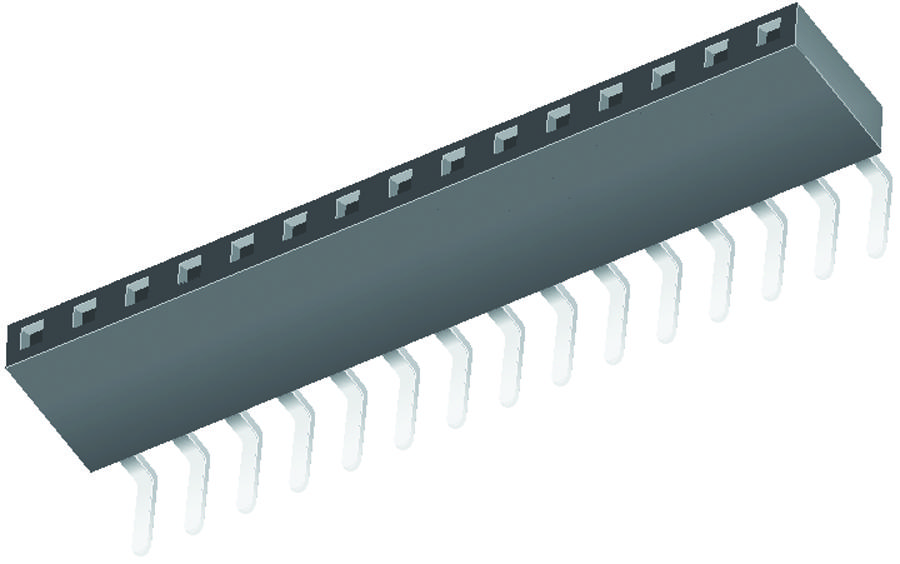

Buy the Buy Samtec SSW First Series Socket Part Number SSW14002TSRALL Online
Purchase the Samtec SSW14002TSRALL high-temperature through-hole socket online. Designed for demanding industrial and electronic applications, it features a robust phosphor bronze contact with gold or tin plating, operating from -55°C to +125°C. This versatile socket supports up to 6.3A and 465 VAC / 655 VDC ratings, ensuring excellent performance and long-lasting durability. Perfect for power and signal connections in challenging environments, it is RoHS compliant and compatible with numerous mating series for flexibility.
Get Samtec SSW14002TSRALL today—built for high-temperature environments and reliable power signal connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW14002TSRALL?
You can click on the BUY or RFQ button to purchase SSW14002TSRALL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW14002TSRALL?
You can download the SSW14002TSRALL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW14002TSRALL?
SAMTEC
