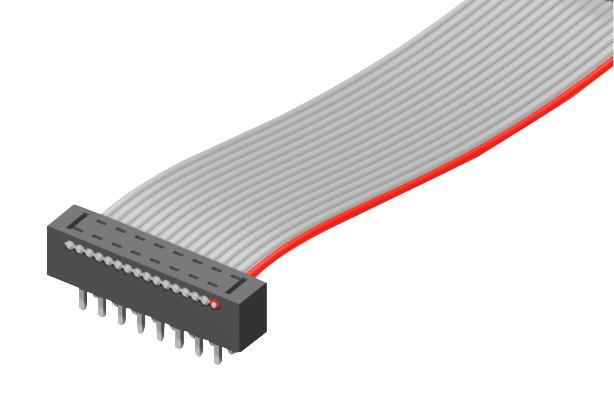

SAMTEC TCMD10T060001N IDC Ribbon Cable Assembly
The TCMD-10-T-06.00-01-N from Samtec is a 2.00mm pitch IDC header ribbon cable assembly with 20 contacts, designed for industrial applications. It features a transfer-ended terminal strip compatible with various Samtec connectors like SMM, MMS, ESQT, PTF, SQT, SQW, and TLE. The assembly has a black glass-filled polyester insulator, 28 AWG tinned copper wires with gray PVC insulation, and operates from -40°C to +105°C. The terminals are phosphor bronze with tin plating. With an 6-inch length and notch polarization, it ensures reliable, secure connections in demanding environments.
SAMTEC TCMD10T060001N IDC Ribbon Cable Assembly Specifications:
- Pitch: 2.00mm (0.0787 inch)
- Contacts: 20
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze with Tin Plating
- Wire Gauge: 28 AWG, 7/36 stranded
- Wire Insulation: Gray PVC
- Operating Temperature Range: -40°C to +105°C
- Assembly Length: 6 inches
- Notch polarization for proper orientation
- Standards: UL E111594
- Compatibility: SMM, MMS, ESQT, PTF, SQT, SQW, TLE connectors
- Transfer-ended terminal strip for secure connections
- RoHS Compliant
- Strain relief option available
- Designed for industrial applications
Buy the Samtec TCMD10T060001N – Reliable IDC Ribbon Cable for Industrial Applications
Purchase the Samtec IDC Ribbon Cable Assembly today to ensure durable, high-quality connections in your industrial systems. With a 2.00mm pitch, 20 contacts, transfer ends, and a temperature range of -40°C to +105°C, it's ideal for demanding environments. The assembly features a black glass-filled polyester insulator, phosphor bronze terminals with tin plating, gray PVC wiring, and polarization notch for correct orientation. Whether for automation, manufacturing, or control systems, buy online now and benefit from fast shipping, OEM-quality standards, and trusted performance.
Buy Samtec TCMD10T060001N now and experience unmatched reliability and performance in your industrial wiring and automation projects.
Frequently Asked Questions
Where can I buy SAMTEC TCMD10T060001N?
You can click on the BUY or RFQ button to purchase TCMD10T060001N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCMD10T060001N?
You can download the TCMD10T060001N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCMD10T060001N?
SAMTEC
