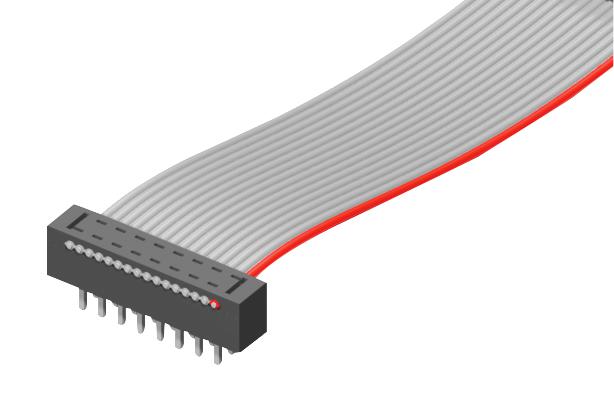

SAMTEC TCMD20T050001NR Ribbon Cable Assembly
The Samtec TCMD-20-T-05.00-01-N-R is a 2.00mm pitch high-reliability IDC header ribbon cable assembly with 40 contacts. Designed for industrial applications, it connects with Samtec series connectors like SMM, MMS, ESQT, PTF, SQT, SQW, and TLE. The assembly features a black glass-filled polyester insulator, using 28 AWG stranded, tinned copper wire with a gray PVC insulator. It incorporates phosphor bronze terminals with tin plating, measures 5 inches in length with potential reversed options, and has no notch polarization. Operating temp range is -40°C to +105°C, and it complies with UL standards.
SAMTEC TCMD20T050001NR Ribbon Cable Assembly Specifications:
- Pitch: 2.00 mm
- Contacts: 40
- Insulator Material: Black glass-filled polyester
- Wire Gauge: 28 AWG stranded, tinned copper
- Wire Insulation: Gray PVC
- Terminal Material: Phosphor bronze
- Plating: Tin
- Assembly Length: 5 inches
- Operating Temperature: -40°C to +105°C
- UL Compliance: E111594
- Polarization: No notch
- Reversed option available
- Connection type: IDC header connector
Buy the Samtec Series TCMD IDC Connector: TCMD20T050001NR
Purchase the Samtec Series TCMD20T050001NR ribbon cable assembly online today to secure a reliable, high-quality connection solution suitable for industrial environments. With 40 contacts and 2.00mm pitch, this assembly supports a wide operating temperature range from -40°C to +105°C. Its construction includes a black glass-filled polyester insulator, 28 AWG stranded tinned copper wire, and phosphor bronze terminals with tin plating, ensuring durability and UL compliance. Perfect for demanding applications where dependable wiring and industrial-grade performance are essential.
Order your Samtec Series TCMD20T050001NR high-reliability ribbon cable today and ensure robust, dependable connections for your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC TCMD20T050001NR?
You can click on the BUY or RFQ button to purchase TCMD20T050001NR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCMD20T050001NR?
You can download the TCMD20T050001NR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCMD20T050001NR?
SAMTEC
