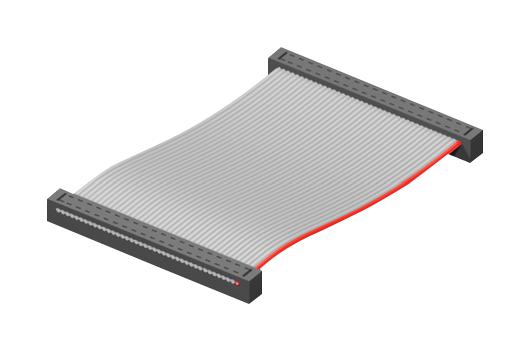

SAMTEC TCSD05D020001FN Tiger Eye IDC Socket
The TCSD-05-D-02.00-01-F-N from Samtec is a 2.00mm pitch, double-ended Tiger Eye IDC ribbon socket with 10 contacts. Designed for reliability, it mates with various Samtec connectors like TMM and EHT series, ensuring secure connections. Made of black glass-filled polyester, it features high-quality BeCu contacts with gold or tin plating over nickel, rated for 2.8A per pin. Supporting wire sizes from 0.48mm to 0.53mm and operating from -40°C to +105°C, it offers low contact resistance and precise polarization, suitable for industrial and electronic applications.
SAMTEC TCSD05D020001FN Tiger Eye IDC Socket Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu
- Plating Options: Au or Sn over 50 μ
- 27
- 1.27
- 18
- 20
- 22
- 28
- 36
- 0.7
- 105
- 15
- 2.8
- 2.87
- 3.17
- 0.48
- 0.53
- 600
- 0.76
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
Buy the Samtec TCSD-05-D-02.00-01-F-N – Reliable Connector for Industrial Applications
Buy the Samtec Tiger Eye IDC socket online today and ensure reliable, high-performance connections for your industrial and electronic projects. With 10 contacts at a 2.00mm pitch, rated for 2.8A per pin, and supporting wire sizes from 0.48mm to 0.53mm, this connector is ideal for applications demanding durability and precision. Made from black glass-filled polyester with high-quality BeCu contacts plated with gold or tin over nickel, it supports temperatures from -40°C to +105°C. Secure polarization features and low contact resistance make it perfect for demanding environments.
Get Samtec TCSD-05-D-02.00-01-F-N today—built for precision and long-lasting durability in industrial and electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC TCSD05D020001FN?
You can click on the BUY or RFQ button to purchase TCSD05D020001FN from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCSD05D020001FN?
You can download the TCSD05D020001FN datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCSD05D020001FN?
SAMTEC
