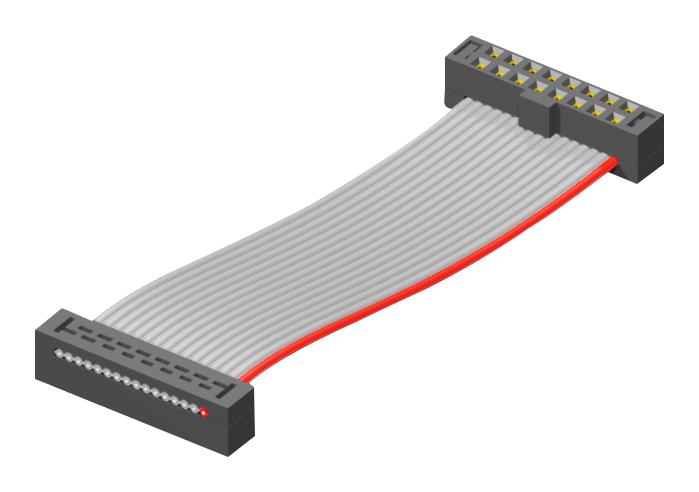

SAMTEC TCSD07D060001FN IDC Socket Cable
The TIGER EYE IDC SOCKET CABLE offers reliable connections with a black glass-filled polyester insulator and BeCu contacts plated with Au or Sn over Ni. Designed for 28 AWG stranded copper wire with gray PVC insulation, it supports a current rating of 2.8 A per pin within a temperature range of -40°C to +105°C. Its insertion depth varies from 0.113” to 0.125”. The connector includes polarization features, optional locking clips, strain relief, and compatibility with multiple sizes and configurations for versatile applications.
SAMTEC TCSD07D060001FN IDC Socket Cable Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu
- Plating: Au or Sn over 50um Ni
- Wire: 28 AWG 7/36 Stranded, Tinned, Copper with Gray PVC Insulator
- Current Rating: 2.8 A per pin
- Operating Temp Range: -40°C to +105°C
- Contact Resistance: 15 mΩ
- Insertion Depth: 0.113" to 0.125" (2.87 mm to 3.18 mm)
- Lead Size Accepted: 0.48 mm (0.019") and 0.53 mm (0.021")
- Compatible with various sizes including -06, -07, -08, -10, -12, -13, -15, -17
- Polarizing key options available, non-standard, non-returnable
- Optional locking clips and strain relief available
- Connector supports multiple configurations with specified number of conductors and positions
Buy the Samtec Series TCSD IDC Socket Cable: TCSD07D060001FN
Secure your electrical projects with the IDC Socket Cable, offering high-quality BeCu contacts, precision plating, and reliable 2.8A per pin current capability. Designed for 28 AWG stranded copper wire with gray PVC insulation, it supports a temperature range from -40°C to +105°C. Featuring polarization keys, optional locking clips, and strain relief options, this connector ensures secure, durable connections for a variety of electronic and industrial applications. Purchase online to ensure fast delivery and full compatibility with your needs.
Buy Samtec TCSD07D060001FN IDC socket cable now and experience reliable connections with high current capacity and versatile configurations.
Frequently Asked Questions
Where can I buy SAMTEC TCSD07D060001FN?
You can click on the BUY or RFQ button to purchase TCSD07D060001FN from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCSD07D060001FN?
You can download the TCSD07D060001FN datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCSD07D060001FN?
SAMTEC
