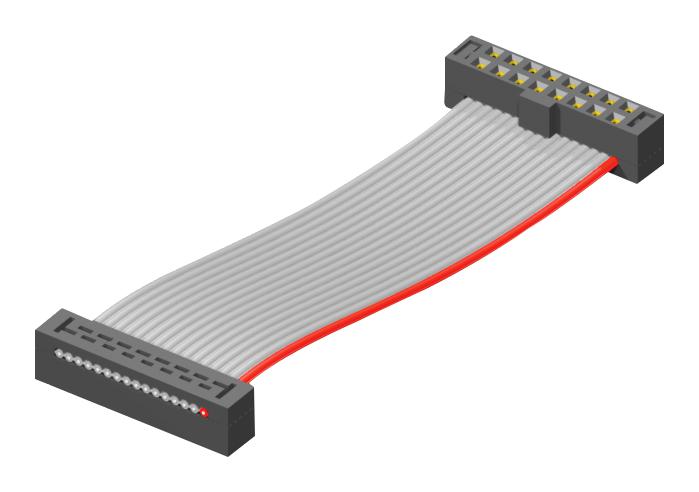

SAMTEC TCSD08D020001FN IDC Socket Cable
The Tiger Eye IDC Socket Cable is constructed with insulator material of black glass-filled polyester and BeCu contact components. It features gold or tin plating over 50 micrometers nickel, accommodating 28 AWG stranded tinned copper wire with gray PVC insulator. Capable of handling up to 2.8 A per pin, it operates within a temperature range of -40°C to +105°C. The socket provides a contact resistance of 15 milliohms, with an insertion depth of approximately 2.87 mm to 3.125 mm. Compatible with standard sizes and polarizable setups, it offers options for locking clips and strain relief, making it an ideal choice for electronic and connector assemblies.
SAMTEC TCSD08D020001FN IDC Socket Cable Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu
- Plating: Au or Sn over 50 um Ni (1.27 μm)
- Wire: 28 AWG 7/36 Stranded, Tinned, Copper with Gray PVC Insulator
- Current Rating: 2.8 A per pin
- Operating Temp Range: -40°C to +105°C
- Contact Resistance: 15 mΩ
- Insertion Depth: 2.87 mm to 3.125 mm
- Number of Positions: Varies, specify ‘XX’ as position number
- Polarization: Keyed, available in sets of six
- Plating Option: Standard 30 μ
- Locking clips and strain relief options available
- Compatible with optional ejector headers and customizable configurations
Buy the Buy Electronic Connector Part Number TCSD08D020001FN Online
Purchase the IDC socket cable online today to ensure secure, reliable connections for your electronic projects. Featuring BeCu contacts with gold or tin plating, it supports 28 AWG stranded wire, delivering up to 2.8 A per pin within a temperature range of -40°C to +105°C. This high-quality connector is designed for durability, featuring options for locking clips, strain relief, and polarization to meet your specific assembly needs. Shop now for fast delivery and technical support.
Buy electronic connector Part Number TCSD08D020001FN now and experience reliable performance and secure connections for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TCSD08D020001FN?
You can click on the BUY or RFQ button to purchase TCSD08D020001FN from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCSD08D020001FN?
You can download the TCSD08D020001FN datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCSD08D020001FN?
SAMTEC
