SAMTEC TCSD10S020001N Tiger Eye IDC Socket
The TCSD-10-S-02.00-01-N from Samtec is a 2.00mm pitch, single-ended Tiger Eye IDC ribbon socket assembly featuring 20 contacts. Designed for reliable connections with Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM series connectors, it is UL E111594 certified. The socket supports lead sizes from 0.48mm to 0.53mm and has an insertion depth of 2.8mm to 3.17mm. Constructed with high-quality Tiger Eye contacts of beryllium copper, plated with 30µ” gold, and insulated with black glass-filled polyester, it is rated for up to 2.8A per pin. The wire connection uses 28 AWG, 7/36 stranded, tinned copper with a gray PVC insulator, making it suitable for temperature ranges from -40°C to +105°C. With a contact resistance around 15 milliohms and an assembled length of 2 inches, it ensures durability and proper polarity thanks to notch polarization. Ideal for ribbon cable connections in industrial and electronic applications.
SAMTEC TCSD10S020001N Tiger Eye IDC Socket Specifications:
- Pitch: 2.00mm
- Contacts: 20 high-reliability Tiger Eye IDC contacts
- Contact Material: Beryllium copper
- Plating: 30µ” (0.76µm) gold over nickel
- Insulator Material: Black glass-filled polyester
- Wire: 28 AWG, 7/36 stranded, tinned copper with gray PVC insulator
- Current Rating: 2.8A per pin
- Lead Size Range: 0.48mm to 0.53mm
- Insertion Depth: 2.8mm to 3.17mm
- Certification: UL E111594
- Operating Temperature: -40°C to +105°C
- Contact Resistance: approximately 15 milliohms
- Assembly Length: 2 inches
- Supports multiple Samtec series connectors
- Notch polarization for correct orientation

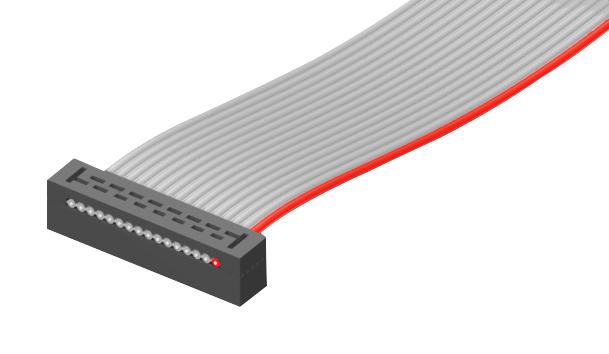

Buy the Buy Samtec Tiger Eye IDC Socket Part Number TCSD10S020001N Online
Purchase the Samtec Tiger Eye IDC socket online today to ensure durable, high-performance cable connections for your electronic applications. Featuring 20 contacts with a 2.00mm pitch, it is constructed with beryllium copper contacts plated with 30µ” gold over nickel, and insulated with black glass-filled polyester for longevity. Capable of handling 2.8A per pin, it supports lead sizes from 0.48mm to 0.53mm and has an insertion depth between 2.8mm and 3.17mm. Its UL certification guarantees quality, making it the ideal choice for industrial and electronic projects requiring reliable, efficient connectivity.
Buy Samtec TCSD10S020001N now and experience unmatched reliability and performance in high-quality ribbon cable connections.
