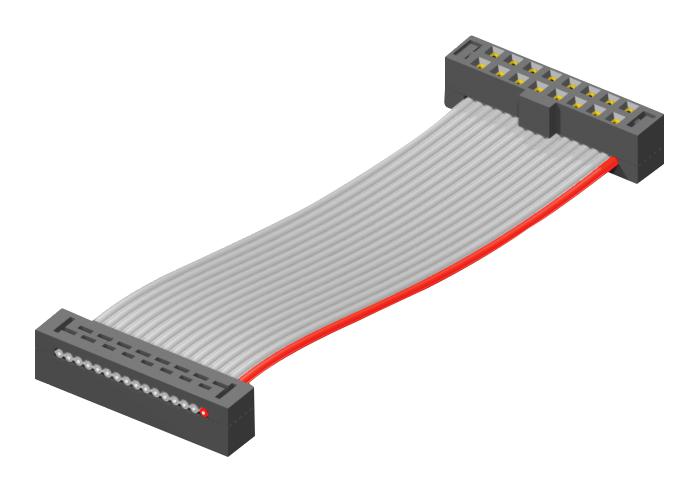

SAMTEC TCSD25D200001FN IDC Socket Cable
The TIGER EYE IDC SOCKET CABLE is a high-quality electronic component crafted with insulator material of black glass-filled polyester and BeCu contacts plated with gold or tin over 50 microns of nickel. Suitable for 28 AWG stranded copper wire with gray PVC insulation, it offers a current rating of 2.8 A per pin and features a contact resistance of 15 mΩ. Designed for operating temperatures from 40°C to +105°C, it includes various sizes, polarizing keys, and optional features like locking clips and strain relief for versatile electronic applications.
SAMTEC TCSD25D200001FN IDC Socket Cable Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu
- Plating: Au or Sn over 50 microns Ni
- Wire: 28 AWG 7/36 stranded, tinned copper with gray PVC insulator
- Current Rating: 2.8 A per pin
- Operating Temp Range: -40°C to +105°C
- Contact Resistance: 15 mΩ
- Insertion Depth: 2.87 mm to 3.125 mm
- Lead Size Accepted: 0.48 mm (.019 inches) and 0.53 mm (.021 inches)
- Additional features include polarizing keys, optional locking clips, and strain relief options, suitable for various compact electronic assemblies.
Buy the Buy Samtec IDC Socket Cable Part Number TCSD25D200001FN Online
Purchase the Samtec IDC Socket Cable TCSD25D200001FN online today for dependable and precise electronic connections. Crafted with durable black glass-filled polyester and BeCu contacts plated with gold or tin, this component supports 28 AWG stranded copper wire rated at 2.8 A per pin. Operating efficiently within -40°C to +105°C, it features easy insertion, compatibility with polarizing keys, and optional locking clips and strain relief methods. Ideal for compact and high-performance electronic assemblies, it guarantees reliability and easy installation for your projects.
Order your Samtec series TCSD25D200001FN IDC socket cable today and ensure reliable connections with superior contact quality and versatile mounting options.
Frequently Asked Questions
Where can I buy SAMTEC TCSD25D200001FN?
You can click on the BUY or RFQ button to purchase TCSD25D200001FN from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCSD25D200001FN?
You can download the TCSD25D200001FN datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCSD25D200001FN?
SAMTEC
