SAMTEC TD103GA Precision Terminal Strips
The precision machined terminal strips provide reliable electrical connections with options for insulator and terminal materials, operating temperature ranges from -55°C to +125°C for HTS and -55°C to +105°C with tin plating. Suitable for high-density applications, these strips feature various pin counts, styles, and sizes, with RoHS compliance and lead-free solderability. Made from Black G.F. Polyester (TS, TD) or Liquid Crystal Polymer (HTS), they ensure durability and performance in demanding environments. Multiple plating options include Au and Sn, with detailed specifications on dimensions and lead configurations. These terminal strips are ideal for complex wiring and circuit applications.
SAMTEC TD103GA Precision Terminal Strips Specifications:
- Insulator Material: Black G.F. Polyester (TS, TD), Black Liquid Crystal Polymer (HTS)
- Terminal Material: Brass, Phosphor Bronze (Style G)
- Plating: Au over 50μ
- Sn over 100μ
- Ni over 50μ
- Ni over 50μ
- Cu
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (TS Series, Wave only)
- Pin Count and Style: Varied, including styles 1A and 1O1
- Dimensions: Diameter 4.22 mm, Length varies with configuration, with detailed sizes up to 17.88 mm
- Lead and dimension details include: 0.95 mm diameter, 26-2 mm spacing, specific component and style identifiers

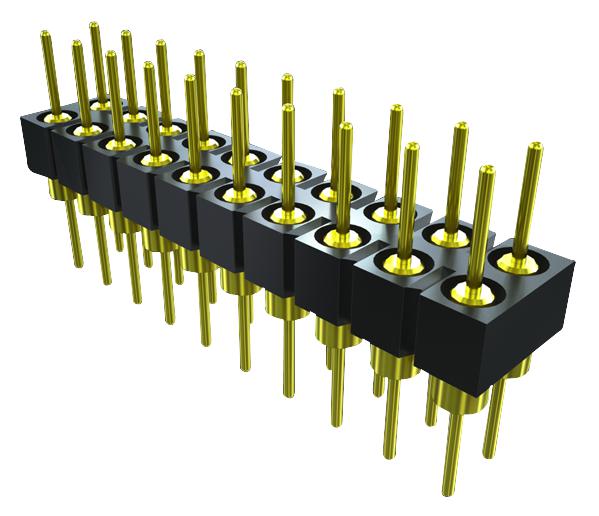

Buy the Samtec Series Precision Machined Terminal Strips: TD103GA
Discover the high-quality precision terminal strips designed for reliable electrical connections in diverse applications. Featuring various pin counts, styles, and materials, these terminal strips ensure durability and efficiency. RoHS compliant and lead-free, they are suitable for demanding environments demanding high performance. Made from premium insulator and terminal materials, with options for gold or tin plating, these strips provide secure, corrosion-resistant connections. Perfect for complex wiring, circuit assembly, and industrial applications, order online today to enhance your projects with superior terminal solutions.
Buy Samtec TD103GA precision terminal strips now and experience unmatched reliability and performance in high-density wiring solutions.
Frequently Asked Questions
Where can I buy SAMTEC TD103GA?
You can click on the BUY or RFQ button to purchase TD103GA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TD103GA?
You can download the TD103GA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TD103GA?
SAMTEC
