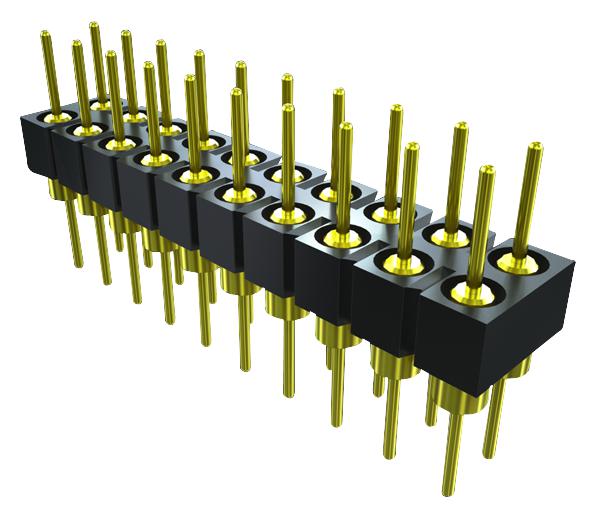

SAMTEC TD115GA Precision Terminal Strips
The precision machined terminal strips are designed for reliable electrical connections in various electronic applications. Made from high-quality materials including black G.F. polyester and liquid crystal polymer insulators, and brass or phosphor bronze terminals with gold or tin plating, these strips operate effectively within temperature ranges of -55°C to +125°C. Suitable for RoHS compliance and lead-free soldering, they provide durable, corrosion-resistant connections. The series offers multiple styles, pin configurations, and variations to accommodate different design needs, ensuring consistent quality and performance in demanding environments.
SAMTEC TD115GA Precision Terminal Strips Specifications:
- Insulator Material: Black G.F. Polyester (TS, TD) or Liquid Crystal Polymer (HTS)
- Terminal Material: Brass with Gold over 50µ (1.27µm), Tin over 100µ (2.54µm), or Nickel coatings
- Operating Temp Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (TS Series, Wave only)
- Number of Pins: varies per configuration
- Pin Diameter: approximately 0.95mm (0.037 inches)
- Material: Brass or phosphor bronze, suitable for high-temperature and high-reliability applications
- Designs & Styles: Multiple styles available, non-standard and customizable options on request
- Dimensional Range: pin lengths and spacing vary, typically around 4.22mm to 17.88mm
- Certifications: RoHS compliant, suitable for lead-free soldering
- Additional Features: High durability, corrosion-resistant, suitable for soldered and wave soldering processes
Buy the Samtec Series TS Precision Terminal Strips: TD115GA
Enhance your electronic projects with our high-quality precision terminal strips designed for durability and reliable connections. Crafted from premium materials with RoHS compliance, these terminal strips are suitable for a variety of applications, including industrial and consumer electronics. Featuring a range of styles, pin configurations, and coatings, they ensure optimal performance under demanding temperature conditions from -55°C to +125°C. Easy to solder and maintain, buy these terminal strips online today for a secure, long-lasting connection solution that meets your technical needs.
Order your Samtec Series TS precision terminal strips today and give your electronic assemblies the durable, reliable connections they need for high-performance applications.
Frequently Asked Questions
Where can I buy SAMTEC TD115GA?
You can click on the BUY or RFQ button to purchase TD115GA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TD115GA?
You can download the TD115GA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TD115GA?
SAMTEC
