SAMTEC TD136GA Terminal Strip
Precision machined terminal strips designed for reliable electrical connections in various electronic applications. These terminal strips feature various pin counts and configurable styles with insulators made from G.F. Polyester or Liquid Crystal Polymer, ensuring high temperature resistance from -55°C to +125°C depending on the material. Made from brass or phosphor bronze with gold, tin, or nickel plating for corrosion resistance and optimal solderability. Suitable for wave soldering, RoHS compliant, and available in multiple styles, sizes, and configurations to meet diverse connectivity needs in automation, control systems, and manufacturing environments.
SAMTEC TD136GA Terminal Strip Specifications:
- Insulator Material: G.F. Polyester (TS, TD), Liquid Crystal Polymer (HTS)
- Terminal Material: Brass, Phosphor Bronze
- Plating: Gold over 50μ
- Tin over 100μ
- Nickel over 50μ
- Others
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Number of Pins: Varies per configuration, typically 2-24 pins
- Pin Diameter: 1.92 mm (0.075 inch) to 4.22 mm (0.166 inch)
- Style: Multiple styles including G, A, S, U, and more
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes, suitable for wave soldering
- Certifications: RoHS compliant
- Designs and specifications are subject to change without notice, available in various sizes and styles

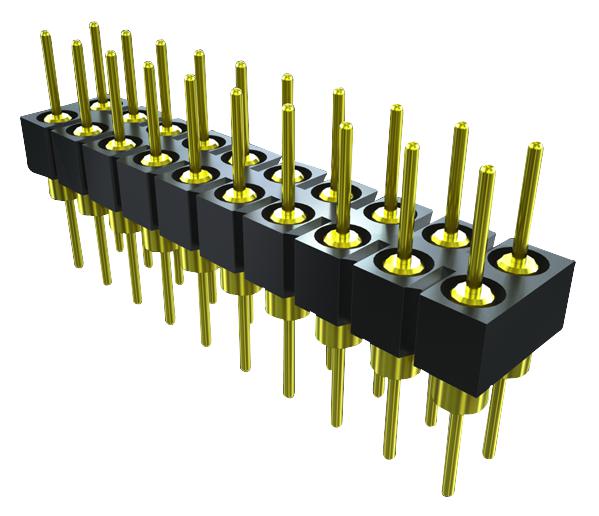

Buy the Buy Samtec Terminal Strips Part Number TD136GA Online
Discover the high-quality Samtec terminal strip TD136GA, ideal for various electronic and manufacturing applications. With insulator options in G.F. Polyester or Liquid Crystal Polymer, these terminal strips can operate from -55°C to +125°C. Made from durable brass or phosphor bronze with gold, tin, or nickel plating, they provide excellent corrosion resistance and solderability. Suitable for wave soldering and RoHS compliant, these versatile connectors are available in multiple styles and configurations to meet diverse project needs. Order online today for quick delivery and reliable performance!
Order your Samtec Series TD136GA terminal strip today and ensure a reliable, high-quality connection solution for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC TD136GA?
You can click on the BUY or RFQ button to purchase TD136GA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TD136GA?
You can download the TD136GA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TD136GA?
SAMTEC
