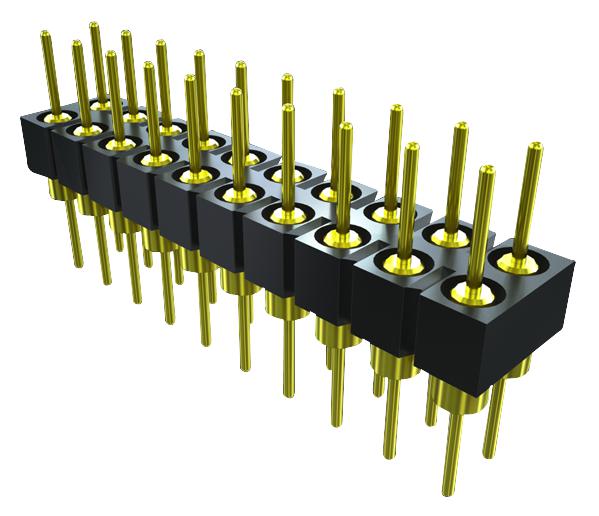

SAMTEC TD136TA1 Precision Terminal Strip
The product is a precision machined terminal strip series featuring various styles including TS, TD, and HTS, designed for reliable electrical connections. Made from high-quality insulator materials such as black G.F. polyester and liquid crystal polymer, with brass or phosphor bronze terminal materials, these terminal strips support RoHS compliance and lead-free soldering. Operating within temperature ranges from -55°C to +125°C depending on the style, they offer durability and performance for industrial and electronic applications. The series supports multiple pin counts, styles, and options, with non-standard lengths available. Suitable for use in wave soldering processes, these terminal strips ensure secure, efficient connections with precise dimensions and plating options, making them ideal for demanding electronic assemblies.
SAMTEC TD136TA1 Precision Terminal Strip Specifications:
- Insulator Material: Black G.F. Polyester (TS, TD), Black Liquid Crystal Polymer (HTS)
- Terminal Material: Brass, Phosphor Bronze (Style G)
- Plating: Au over 50µ
- Sn over 100µ
- Ni over 50µ"
- Operating Temperature: -55°C to +125°C (HTS with Gold), -55°C to +105°C (Tin)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (TS Series)
- Certifications: RoHS compliant, suitable for wave soldering
- Dimensional details vary per style and option, with leads diameter around 0.64mm to 1.92mm, pin count and length customizable, ensuring reliable electrical and mechanical connection.
Buy the Samtec Series Precision Terminal Strip: TD136TA1
Purchase the Samtec TD136TA1 terminal strip online today and enhance your electronic or industrial projects with high-quality, durable, and RoHS-compliant connection components. Designed for versatile use, these precision machined strips support multiple styles and pin configurations, ensuring secure and efficient connections. With excellent temperature ratings and lead-free soldering compatibility, they are ideal for demanding applications requiring dependable electrical contacts. Secure your supply and streamline your manufacturing process by ordering online now for quick delivery and expert support.
Buy Samtec TD136TA1 terminal strip now and experience unmatched reliability and performance for your electronic assembly needs.
Frequently Asked Questions
Where can I buy SAMTEC TD136TA1?
You can click on the BUY or RFQ button to purchase TD136TA1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TD136TA1?
You can download the TD136TA1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TD136TA1?
SAMTEC
