SAMTEC TFM10502SDWT micro pitch header
The TFM-105-02-S-D-WT is a 10-pole, dual-row surface-mount through-hole header with a 1.27mm pitch, featuring gold-plated phosphor bronze contacts and a black Liquid Crystal Polymer insulator. Designed for high reliability and durability, it includes a shrouded body for blind mating and supports welding tabs, lock clips, and weld tab options. Rated at 3.2A and 250 VAC, this component is lead-free, RoHS-compliant, and suitable for industrial and electronic manufacturing applications requiring robust power and signal connections with compact micro pitch design.
SAMTEC TFM10502SDWT micro pitch header Specifications:
- Number of Poles: 10
- Pole Count: 10
- Row Configuration: Dual-row
- Pitch: 1.27 mm
- Contact Material: Phosphor Bronze
- Plating: Gold over Nickel (1.27 µm)
- Insulator Material: Liquid Crystal Polymer
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Lead Length: 0.225 inch (5.72 mm)
- Body Color: Black
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Features: Shrouded for blind mating, optional locking clip, weld tab, and solder nail options
- Application: Industrial electronics, PCB mount power and signal connections
- Dimensions: Pitch 1.27 mm, lead length 5.72 mm, pin count varies with size, compatible with multiple series for versatile use

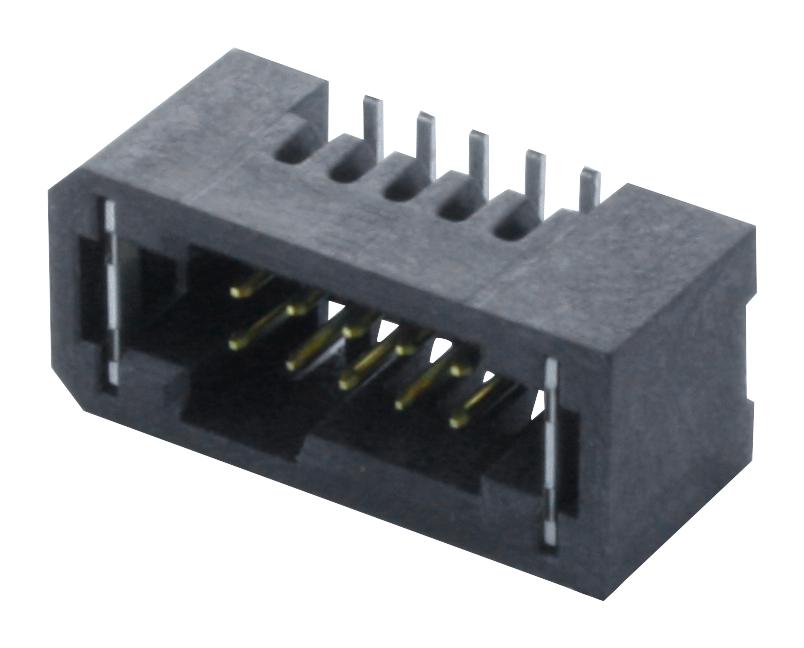

Buy the Samtec Series TFM: Micro Pitch Through-Hole Header: TFM10502SDWT
Enhance your electronic assemblies with the Samtec TFM series micro pitch headers. Known for high reliability, lead-free solderability, and compact design, this 10-pole dual-row connector features gold-plated contacts and a black insulator, supporting 3.2A current at 250 VAC. Its shrouded body ensures secure blind mating, with optional locking features and weld tabs for versatile installation. Perfect for industrial, power, and signal applications, it offers a robust connection solution with ease of mounting and compatibility with multiple series for flexible use.
Buy Samtec TFM10502SDWT now and experience unmatched reliability and performance in high-density industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC TFM10502SDWT?
You can click on the BUY or RFQ button to purchase TFM10502SDWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM10502SDWT?
You can download the TFM10502SDWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM10502SDWT?
SAMTEC
