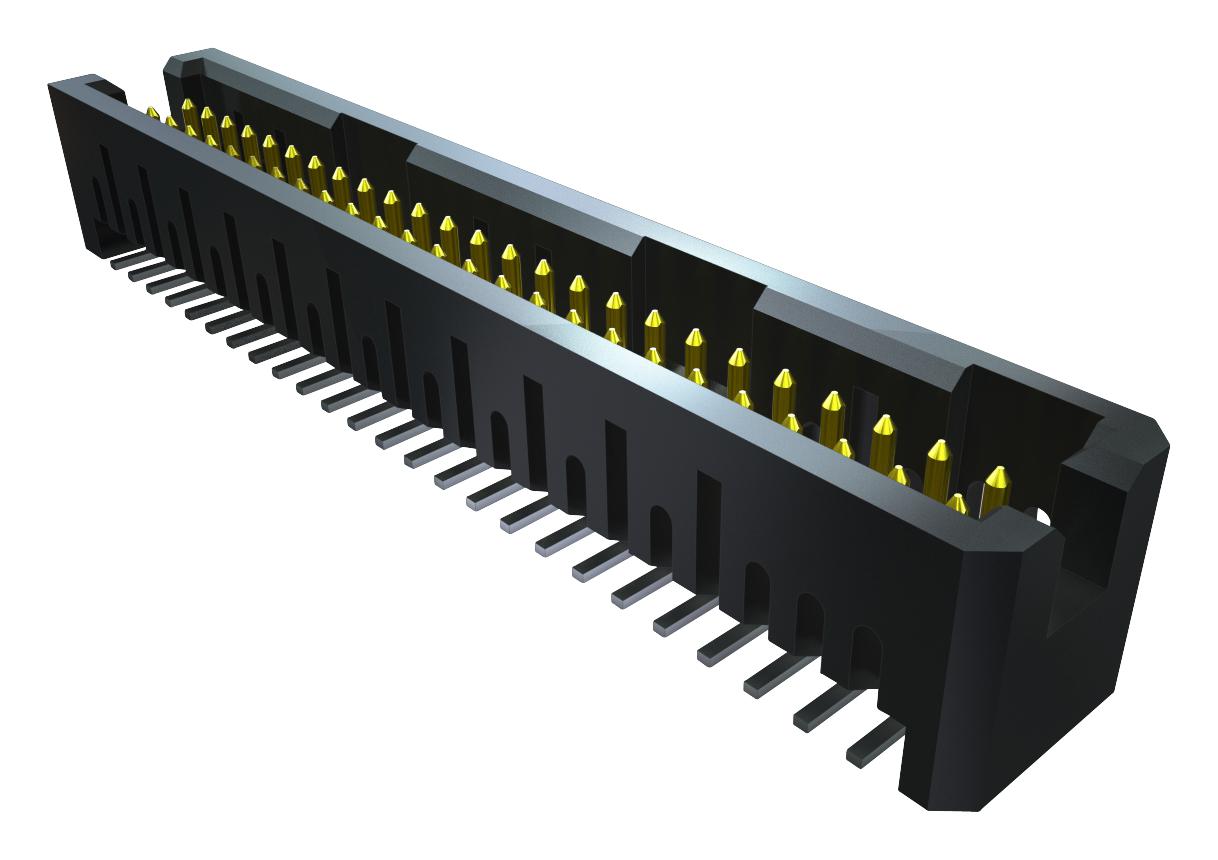

SAMTEC TFM10701LDRE1WT High Reliability Connector
The TFM-110-01-L-D-RE1-WT is a ruggedized, shrouded connector designed for high-reliability applications with a 1.27 mm pitch, suitable for surface mount or through-hole mounting. It features a black liquid crystal polymer insulator and phosphor bronze terminals with gold or nickel plating for excellent electrical performance. Compatible with various mating options including SFM, SFMC, and SFML, it supports operating temperatures from -55°C to +125°C, RoHS compliance, and lead-free soldering. This connector is well-suited for demanding industrial, automotive, and control systems requiring secure, durable connections.
SAMTEC TFM10701LDRE1WT High Reliability Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sover 50 0 (1.27 um) Ni
- Current Rating: 32 Amperes (2 pins powered)
- Voltage Rating: 280 VAC
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 1.27 mm
- Mating Heights: Varied by configuration, typically low-profile
- Mounting Options: Surface mount, through-hole, screw down, locking, weld tab
- Connection Type: Shrouded, board-to-board, cable-to-board
- Compatibility: SFM, SFMC, SFML connectors
- Number of Positions: 5, 7, 10, 15, 20, 30, 50
- Certifications: RoHS
Buy the Buy Samtec TFM-110-01-L-D-RE1-WT Part Number TFM-110-01-L-D-RE1-WT Online
Purchase the Samtec High Reliability Connector TFM-110-01-L-D-RE1-WT online today. Designed for industrial, automotive, and control systems, this rugged connector features a 1.27 mm pitch, black liquid crystal polymer insulator, and phosphor bronze terminals with gold or nickel plating for durability and excellent electrical performance. Its versatile mounting options include surface mount, through-hole, screw down, locking, and weld tab configurations. Operating within -55°C to +125°C and RoHS compliant, this connector ensures secure, long-lasting connections in demanding environments, offering reliable service for mission-critical applications.
Get Samtec TFM-110-01-L-D-RE1-WT today—built for rugged durability and high-performance electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC TFM10701LDRE1WT?
You can click on the BUY or RFQ button to purchase TFM10701LDRE1WT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM10701LDRE1WT?
You can download the TFM10701LDRE1WT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM10701LDRE1WT?
SAMTEC
