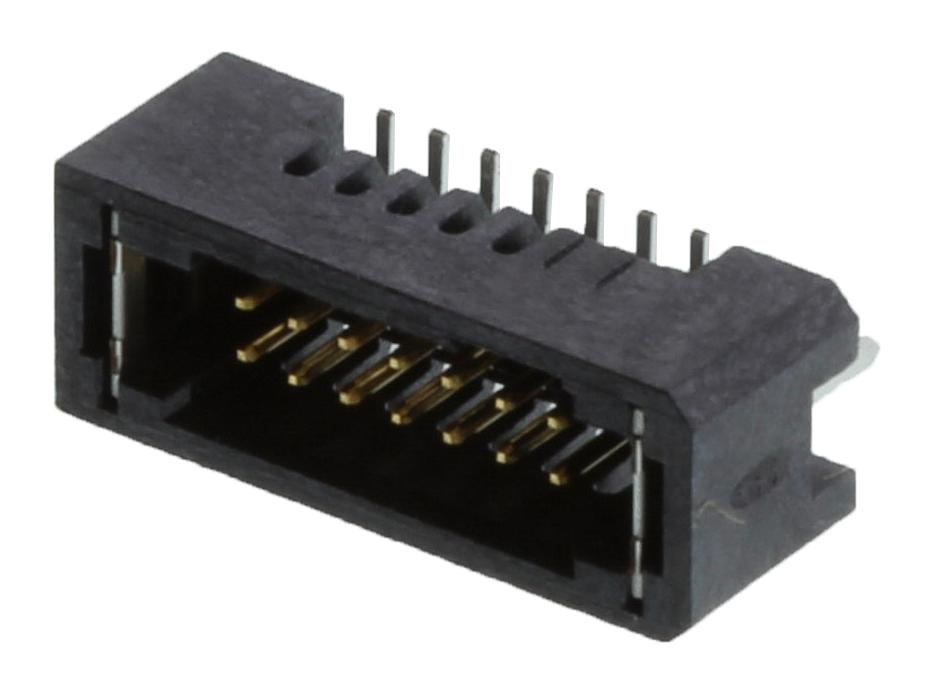

SAMTEC TFM10702LDWT High-Density Industrial Connector
The TFM10702LDWT is a rugged, high-density four-row contact connector designed for industrial applications, featuring surface mount and through-hole options. It offers polarized, keyed, and shrouded configurations with various locking options such as screw-down, friction latch, weld tab, and locking clips. Suitable for PCB assembly, it supports different lead styles, heights, and optional features like dual screw down and right-angle configurations. Constructed with durable materials like BeCu and phosphor bronze, the connector delivers reliable performance at 250VAC, with a contact pitch of .050" and operating cycles of 10,000.
SAMTEC TFM10702LDWT High-Density Industrial Connector Specifications:
- Contact Pitch: 0.050 inch (1.27 mm)
- Number of Positions: 5 to 50
- Material: BeCu for contacts, Phosphor Bronze with gold or Sn over plating
- Voltage Rating: 250VAC
- Operating Cycles: 10,000
- Mated Height: 5.97 mm to 11.81 mm depending on configuration
- Lead Styles: Through-hole, Surface Mount, Pick & Place
- Locking Options: Locking Clip, Dual Screw Down, Weld Tab
- Connector Options: Single Row, Double Row, Right-angle, Elevated
- Supported Heights: 6.35 mm to 11.81 mm
- Certifications: UL Listed, CSA Certified
- Temperature Range: Not specified (research indicates -55°C to +105°C typical)
- Dielectric Material: Polyimide Film, Plastic
- Optional Features: Tape & Reel, Full Reel, Custom solutions available
Buy the Samtec TFM10702LDWT – Reliable Rugged connector for Industrial Applications
Purchase the rugged TFM10702LDWT connector online today and ensure a reliable connection for your industrial applications. Featuring high-density four-row design, polarized and keyed configurations, various locking options, and both surface mount and through-hole options, it provides flexible installation for challenging environments. Made with durable materials like BeCu and phosphor bronze, it's rated for 250VAC and 10,000 cycles. Order now to benefit from quick shipping, expert support, and the quality assurance that professionals rely on for reliable electrical connections in manufacturing and automation systems.
Order your Samtec series TFM10702LDWT today and give your projects the dependable quality they deserve, with rugged design and versatile configurations perfect for industrial PCB assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TFM10702LDWT?
You can click on the BUY or RFQ button to purchase TFM10702LDWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM10702LDWT?
You can download the TFM10702LDWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM10702LDWT?
SAMTEC
