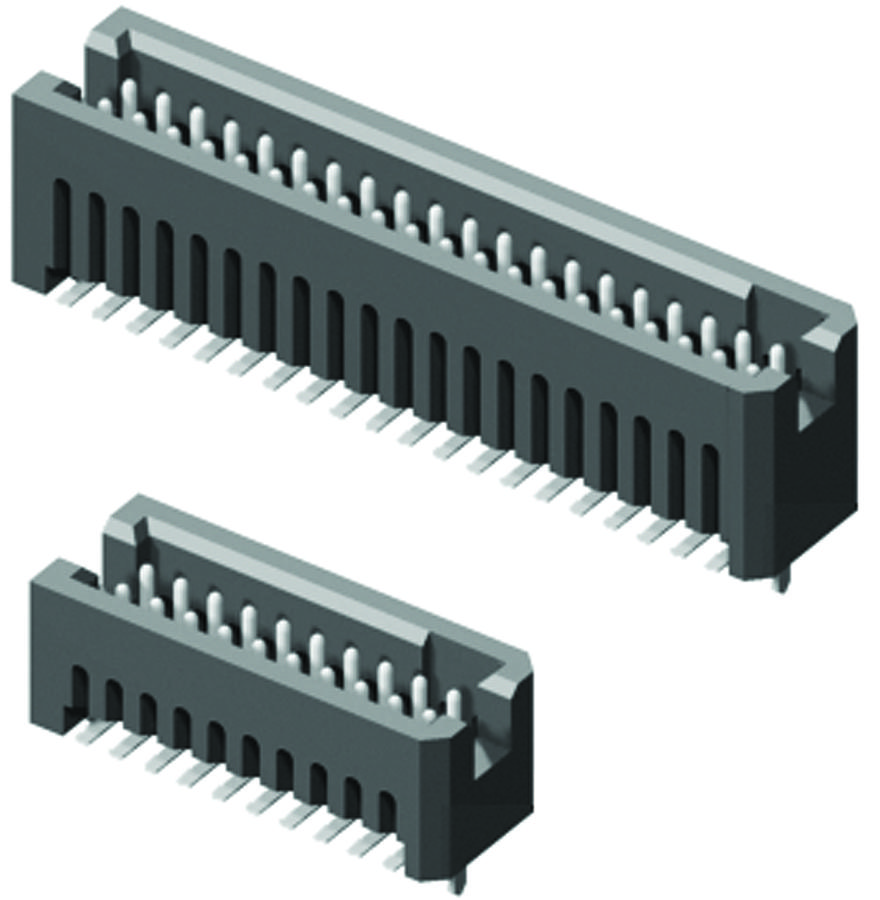

SAMTEC TFM11002SDWT PCB Connector
The TFM11002SDWT is a high-reliability, surface mount or through-hole connector designed for versatile PCB mating applications. Featuring a ruggedized shrouded body, it supports coplanar mating with SFM series and offers locking, weld tab, or screw-down options. Its construction uses black Liquid Crystal Polymer insulation and phosphor bronze terminals, plated with gold or Ni for optimal conductivity and corrosion resistance. Operating within -55°C to +125°C, it is RoHS compliant, with a current rating of 32A per pin, suitable for demanding electronic assemblies requiring secure, high-performance connections.
SAMTEC TFM11002SDWT PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Ni over 50 μ
- Ni
- Current Rating: 32A per pin
- Voltage Rating: 280 VAC mated with SFM
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mated Heights: Customizable depending on options
- Connection Types: Surface mount or through-hole, with lock and weld options
- Pitch: 1.27 mm / 0.050 inch
- Number of Positions: Varies from 3 to 50
- Compatibility: Supports SFM, SFMC, and other mating series
- Certifications: RoHS compliant, built to industry standards
- Optional: Locking clips, weld tabs, screw-down options
Buy the Samtec Series TFM: High-Performance PCB Connector TFM11002SDWT
Purchase the Samtec TFM11002SDWT now to ensure your electronic assemblies have durable, high-current, and reliable connections. Its ruggedized shrouded body, versatile mounting options, and RoHS compliance make it ideal for demanding industrial and commercial applications. Designed for surface mount or through-hole mounting, it offers locking, weld, or screw-down options for secure engagement. With a 32A per pin current rating and broad temperature range, it guarantees performance in diverse environments, supporting your project’s success with ease and confidence.
Buy Samtec TFM11002SDWT connector now and experience unmatched reliability and high-current performance with ruggedized features.
Frequently Asked Questions
Where can I buy SAMTEC TFM11002SDWT?
You can click on the BUY or RFQ button to purchase TFM11002SDWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM11002SDWT?
You can download the TFM11002SDWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM11002SDWT?
SAMTEC
