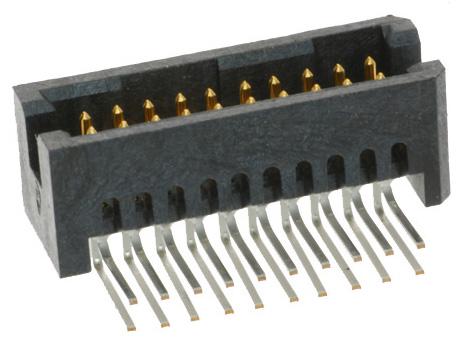

SAMTEC TFM11501SDWT Shrouded Header
The TFM11501SDWT is a high-performance shrouded header designed for versatile PCB connections, available in surface mount and through-hole options. Featuring a black Liquid Crystal Polymer insulator and phosphor bronze terminals with gold or tin over nickel plating, it supports up to 3.2A per pin at 250 VAC. Operating within -55°C to +125°C, this RoHS-compliant component offers precise coplanarity and reliable blind mating. Ideal for compact electronics requiring durable, high-current, and temp-resistant connections with optional locking, weld tabs, and screw-down features.
SAMTEC TFM11501SDWT Shrouded Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 μm)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: 0.10 mm (.004") to 0.15 mm (.006")
- Pitch: 1.27 mm (.050")
- Varieties: Surface mount and through-hole, with locking, weld tab, and screw-down options
- Number of Positions: 5 to 50
- Certification: Recognized RoHS compliance
- Optional features include locking clips, weld tabs, and optional sizes
- Designed for blind mating applications with high reliability and durability
Buy the Buy Samtec TFM11501SDWT Part Number TFM11501SDWT Online
Purchase the Samtec TFM11501SDWT shrouded header online today to ensure reliable, high-performance PCB connections. Its robust design supports up to 3.2A per pin at 250 VAC and operates within -55°C to +125°C, making it ideal for demanding electronic applications. Features include a liquid crystal polymer insulation, gold or tin plating, and options for surface mount or through-hole mounting, with locking, weld tab, and screw-down options for secure connections. Order now for fast delivery and trusted quality.
Buy Samtec TFM11501SDWT now and experience unmatched reliability and performance in compact, high-current PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TFM11501SDWT?
You can click on the BUY or RFQ button to purchase TFM11501SDWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM11501SDWT?
You can download the TFM11501SDWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM11501SDWT?
SAMTEC
