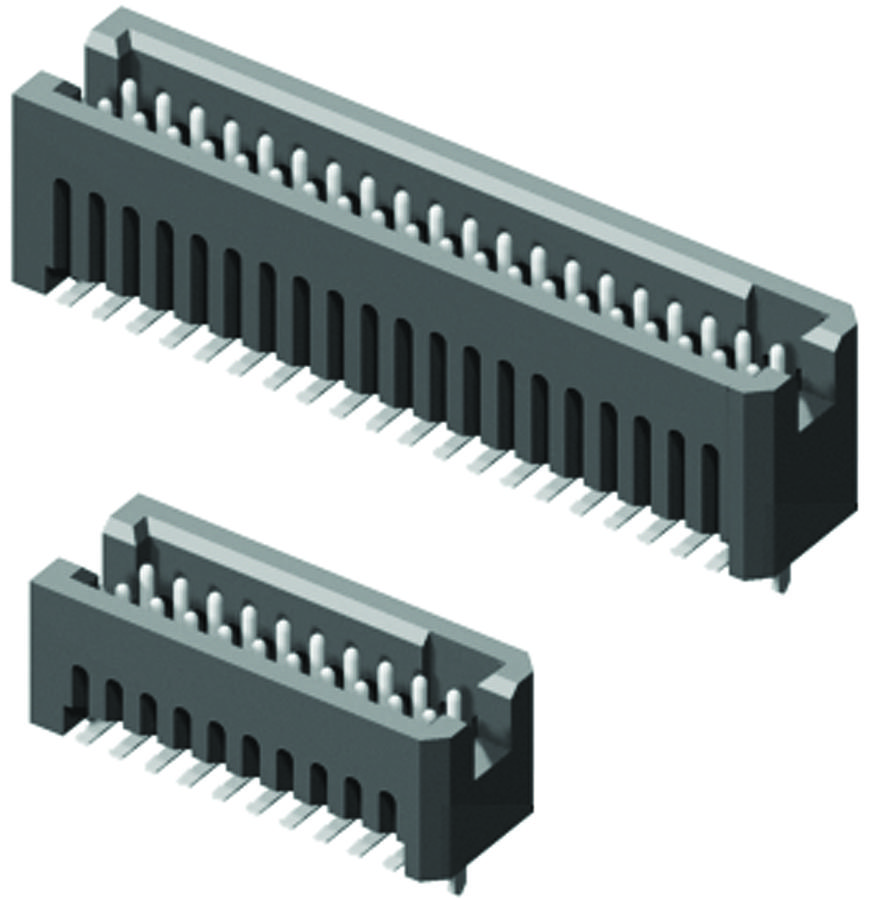

SAMTEC TFM11502SD Terminal Strip
The TFM series Rugged Tiger Eye™ Terminal Strip offers high reliability with a multi-finger beryllium copper contact system, suitable for high cycle applications. It supports surface mount or through-hole terminations, providing vertical, right-angle, and horizontal orientations for versatile mating setups. Optional features include alignment pins, locking clips, dual screw-downs, and weld tabs for durability. The shrouded body enables blind mating, compatible with Tiger Eye™ contact sockets and cable assemblies. Various stack heights and rugged features like solder nails make it ideal for industrial, automation, and manufacturing use, emphasizing long-lasting performance.
SAMTEC TFM11502SD Terminal Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 µm)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC mated with SFM
- Operating Temperature Range: 55°C to +125°C
- Configuration: Surface mount or through-hole, with options for locking, weld tabs, and solder nails
- Pitch: 1.27 mm (.050 inches)
- Compatible with: SFM, SFMC, SFSD, SFML contact sockets and cable assemblies
- RoHS Compliant: Yes
- Lead-free processable
- Stack heights: Various options available up to 50 positions
- Body shape: Shrouded for blind mating, with optional locking, welding, and soldering features
- Application: Industrial machinery, automation systems, manufacturing equipment
Buy the Samtec Series TFM Terminal Strip: TFM11502SD
Order the Samtec TFM11502SD terminal strip today for your industrial, automation, or manufacturing needs. Designed for high reliability with a rugged body, it supports surface mount and through-hole terminations, offering multiple orientations and optional features like locking clips, weld tabs, and solder nails. Its durable construction includes a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold or tin over nickel, rated for 3.2A per pin at up to 250 VAC. This versatile, long-lasting product ensures secure, high-quality connections in demanding applications.
Get Samtec TFM11502SD today—built for high reliability and rugged industrial performance.
Frequently Asked Questions
Where can I buy SAMTEC TFM11502SD?
You can click on the BUY or RFQ button to purchase TFM11502SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM11502SD?
You can download the TFM11502SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM11502SD?
SAMTEC
