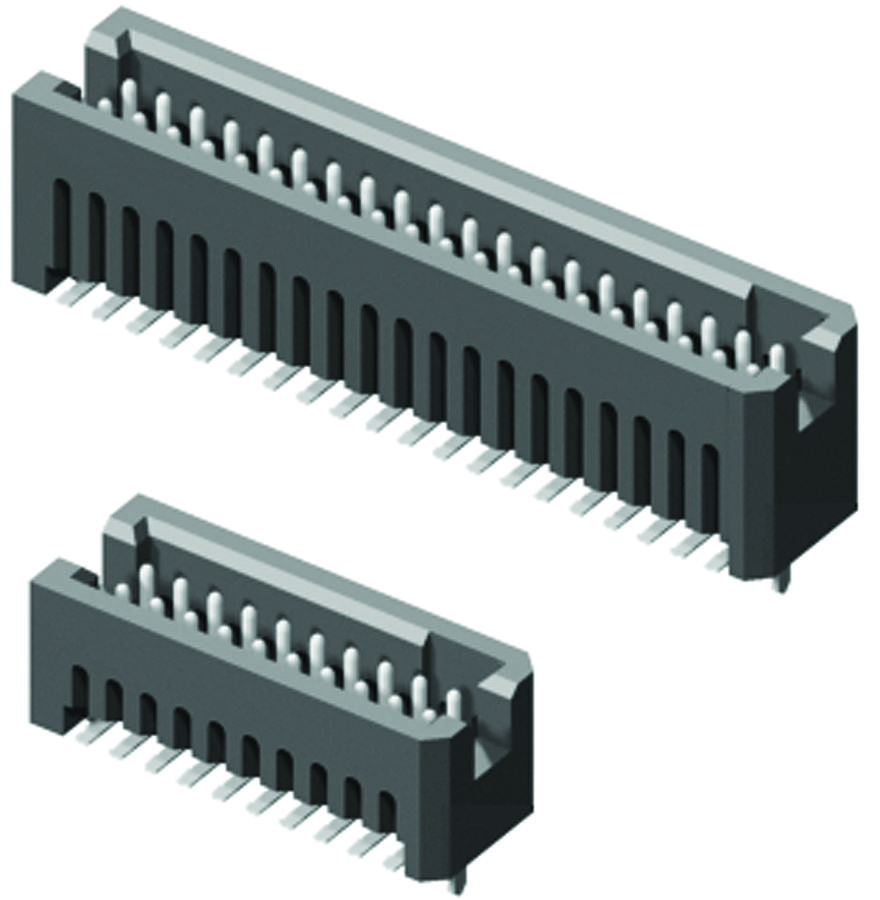

SAMTEC TFM12002SDWT Shrouded Header
The TFM12002SDWT is a shrouded header designed for reliable blind mating applications, combining surface mount and through-hole options. Constructed with a black Liquid Crystal Polymer insulator and phosphor bronze terminals plated with gold over nickel, this product supports a current rating of 3.2A per pin at 250 VAC and operates within -55°C to +125°C. Its compact micro pitch of 1.27 mm (.050 inch) and various locking, weld tab, and locking clip options make it suitable for high-density, durable connections in electronics and PCB assemblies. RoHS compliant, it ensures environmental safety. Perfect for complex PCB designs requiring flexibility, durability, and precise mating, the header offers additional options for custom configurations.
SAMTEC TFM12002SDWT Shrouded Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 um)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temperature Range: -55°C to +125°C
- Pitch: 1.27 mm (.050 inch)
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Lead Style: Surface mount or through-hole with various options
- Weld tab, locking, and locking clip options available
- Suitable for SMT & Through-hole PCB applications
- Compatible with multiple mating headers for high-reliability connections
- Certifications: RoHS, info on quality standards available at samtec.com
- Versatile for complex electronics requiring compact, durable connectors
- Design changes and specifications are subject to manufacturer updates
Buy the Samtec Series TFM: High-Density Shrouded Header 1.27mm Pitch
Purchase the Samtec TFM12002SDWT shrouded header online today to ensure durable and reliable PCB connections. With options for surface mount and through-hole mounting, it supports high current ratings of 3.2A per pin at 250 VAC, suitable for complex electronic assemblies. Its compact 1.27 mm pitch and versatile locking, weld tab, and clip options make it ideal for high-density, space-constrained projects. RoHS compliant, this connector guarantees environmental safety and is compatible with various headers for secure, long-lasting connections in demanding electronic applications. Order now for fast delivery and seamless integration into your designs.
Buy Samtec TFM12002SDWT now and experience unmatched reliability and performance in high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TFM12002SDWT?
You can click on the BUY or RFQ button to purchase TFM12002SDWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM12002SDWT?
You can download the TFM12002SDWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM12002SDWT?
SAMTEC
