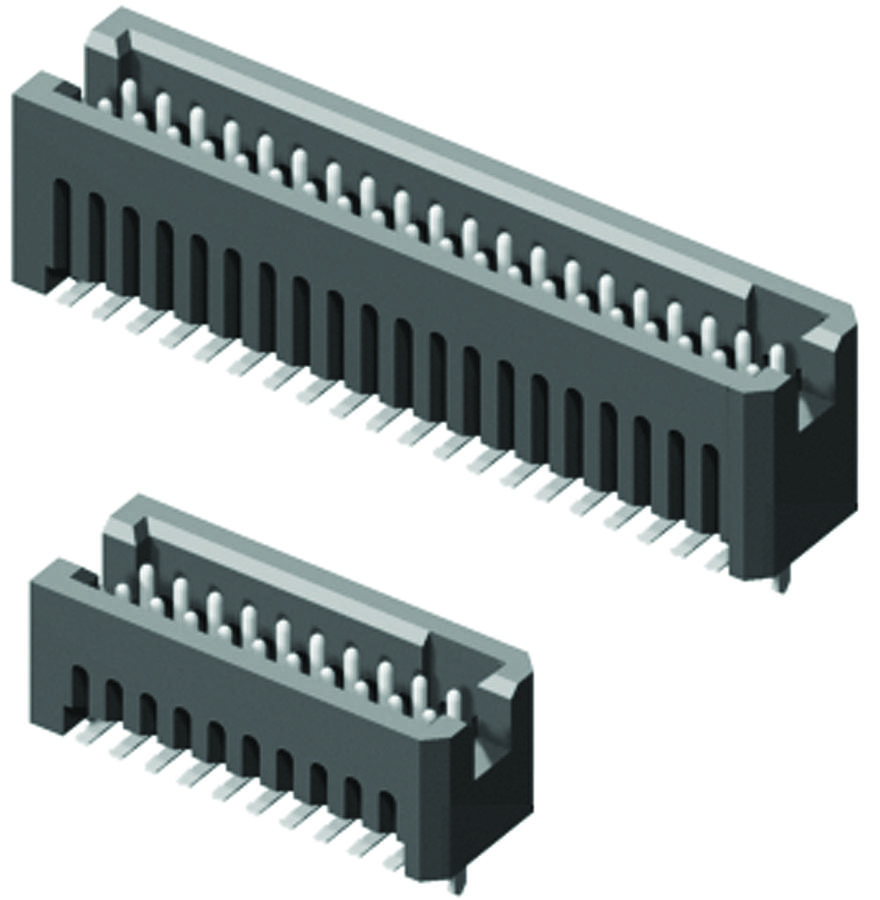

SAMTEC TFM12502SD Shrouded Header
The TFM12502SD is a high-current, compact shrouded header designed for industrial applications, offering reliable blind mating connections. Crafted with a black liquid crystal polymer insulator and phosphor bronze terminals, it has gold or tin plating over nickel. Rated for 3.2A per pin at 250 VAC, operating reliably between -55°C to +125°C. Suitable for SMT and through-hole mounting, it supports various lock and weld options, with configurations for multiple pin counts. An essential component for compact, durable, and high-performance electrical connections.
SAMTEC TFM12502SD Shrouded Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Ni (1.27 um)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temperature Range: -55°C to +125°C
- Mounting Options: SMT and Through-Hole
- Pin Counts: 5 to 50 positions
- Pitch: 1.27 mm (0.050 inch)
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Locking and weld tab options available
- Compatible with various mating with SFM, SFMC, SFSD, SFML modules
- Certifications: Refer to samtec.com/quality for full scope of recognitions
- Design features: Shrouded body for blind mating, multiple sealing options
Buy the Samtec TFM12502SD – Reliable Shrouded Connectors for Industrial Applications
Purchase the Samtec TFM12502SD header online today to ensure a dependable, high-performance connection in your industrial system. With its robust design, high current rating, and versatile mounting options, it offers excellent durability and flexibility. Ideal for applications requiring reliable blind mating, it supports both SMT and through-hole configurations, featuring lock and weld options for added security. Order now to enhance your electrical assemblies with this top-quality, RoHS-compliant connector designed to meet rigorous industrial standards.
Buy Samtec TFM12502SD now and experience unmatched reliability, high current capacity, and versatile mounting options for industrial-grade connections.
Frequently Asked Questions
Where can I buy SAMTEC TFM12502SD?
You can click on the BUY or RFQ button to purchase TFM12502SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM12502SD?
You can download the TFM12502SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM12502SD?
SAMTEC
