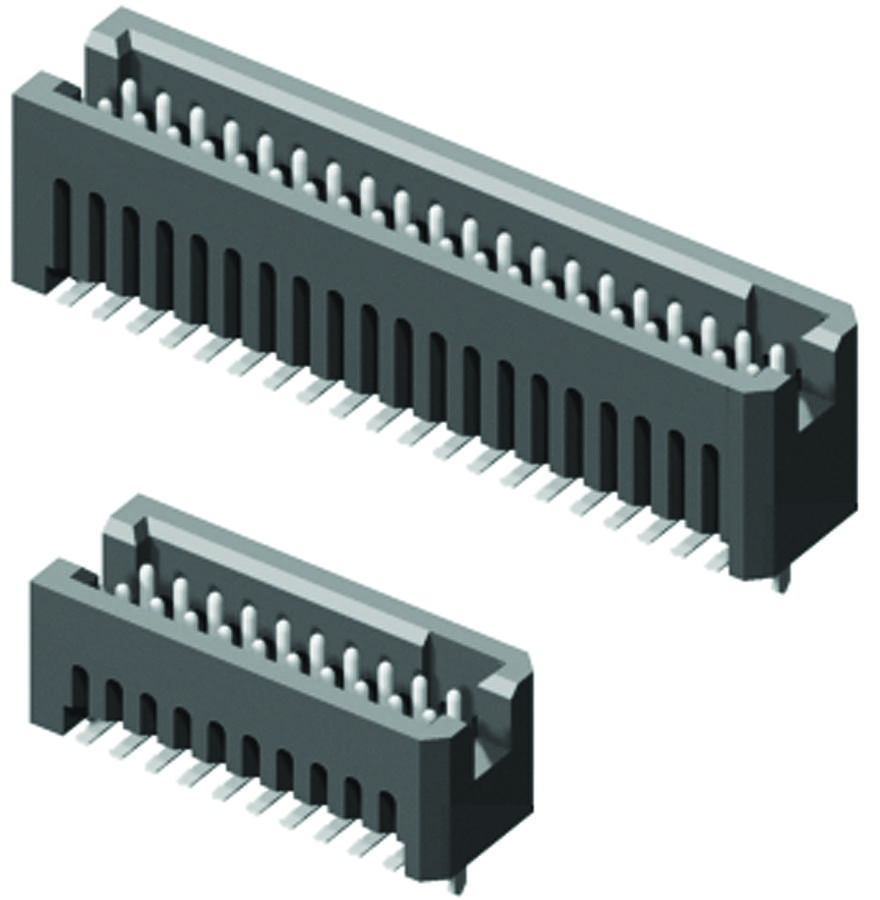

SAMTEC TFM13002SD Terminal Strip
The TFM series Rugged Tiger Eye™ Terminal Strip offers high reliability with a multi-finger BeCu contact system, suitable for surface mount and through-hole terminations. It supports vertical, right-angle, and horizontal orientations for flexible connection options, including parallel, perpendicular, and coplanar configurations. The terminal strip features optional ruggedization features like locking clips, weld tabs, alignment pins, and a shrouded body for blind mating, making it ideal for industrial environments requiring durability and versatile mounting. Compatibility with high-reliability contact sockets and cable assemblies enhances its application scope, with optional Extended Life Product™ versions for extended service life.
SAMTEC TFM13002SD Terminal Strip Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 µm)
- Current Rating: 3.2A per pin (one pin per row)
- Voltage Rating: 250 VAC mated with SFM
- Operating Temp Range: 55°C to +125°C
- RoHS Compliance: Yes
- Processing: Lead-Free Solderable
- Mounting: Surface mount or through-hole with optional screw down, weld tab, or solder nail
- Body Features: Shrouded for blind mating, adjustable stack heights, locking options, extended durability versions
- Pin Pitch: 1.27 mm (.050 inch)
- Number of Positions: 5 to 50
- Orientation Support: Vertical, right-angle, horizontal
- Compatibility: Supports SFM, SFMC, SFSD, and high-reliability sockets
- Ruggedization: Locking clips, weld tabs, solder nails, Extended Life Product™
- Additional options: Alignment pins, optional plating and configurations
Buy the Samtec Series Rugged Tiger Eye Terminal Strip: TFM13002SD
Order the Samtec TFM13002SD terminal strip online today for high-reliability connections in industrial applications. Designed with rugged features, multiple mounting options, and extended durability options, this terminal strip ensures long-lasting performance. It supports surface mount and through-hole configurations, offers optional locking clips, weld tabs, and alignment pins for enhanced ruggedness, and features a shrouded body for blind mating. Whether for complex automated systems or durable electrical connections, purchase this versatile product online for quick delivery and superior performance in demanding environments.
Get Samtec TFM13002SD today—built for rugged industrial environments with high reliability and versatile mounting options.
Frequently Asked Questions
Where can I buy SAMTEC TFM13002SD?
You can click on the BUY or RFQ button to purchase TFM13002SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM13002SD?
You can download the TFM13002SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM13002SD?
SAMTEC
