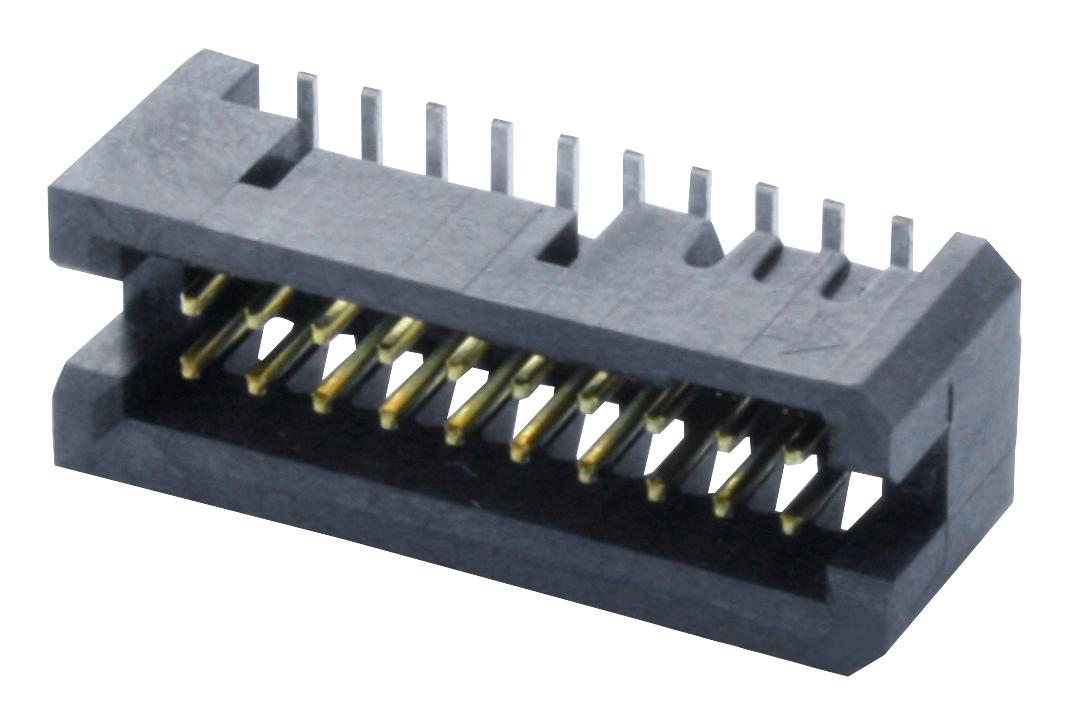

SAMTEC TFML11002SD Shrouded PCB Header
The TFML110-02-L-D-LC is a shrouded, surface-mount or through-hole header designed for reliability and versatility in PCB connections. Featuring a liquid crystal polymer insulator and phosphor bronze terminals with gold or tin plating, it supports up to 3.2A per pin at 250 VAC. Suitable for blind mating, it offers different options including locking clips, weld tabs, and locking mechanisms. Its operating temperature range is from -55°C to +125°C, making it ideal for demanding industrial applications requiring durable, high-density, micro pitch connector solutions.
SAMTEC TFML11002SD Shrouded PCB Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 µm)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC mated with SFM
- Operating Temp Range: -55°C to +125°C
- Contact Pitch: 1.27 mm (0.050")
- Number of Positions: 5 to 50 (varies by model)
- Mounting Style: Surface Mount and Through-Hole options
- RoHS Compliant: Yes
- Processing: Lead-Free Soldering
- Includes locking options, weld tabs, and optional locking clips
- Compatible with multiple mating series including SFM, SFMC, SFSD
- Weld tab standard on -DH option, no need to specify -WT
Buy the Samtec Series TFM: Shrouded PCB Header - TFML110-02-L-D-LC
Purchase the durable and high-performance Shrouded PCB Header online today. Designed for demanding industrial applications, it features a 1.27 mm pitch, supports up to 3.2A per pin, and operates across a temperature range of -55°C to +125°C. Its liquid crystal polymer insulator and phosphor bronze terminals with gold or tin plating ensure high reliability and corrosion resistance. Compatible with multiple mating series, this connector suits both SMT and through-hole PCB assembly, offering locking, weld tab, and optional locking clip features for secure connections.
Get Samtec TFML110-02-L-D-LC today—built for durability, high-electrical performance, and versatile PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TFML11002SD?
You can click on the BUY or RFQ button to purchase TFML11002SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFML11002SD?
You can download the TFML11002SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFML11002SD?
SAMTEC
