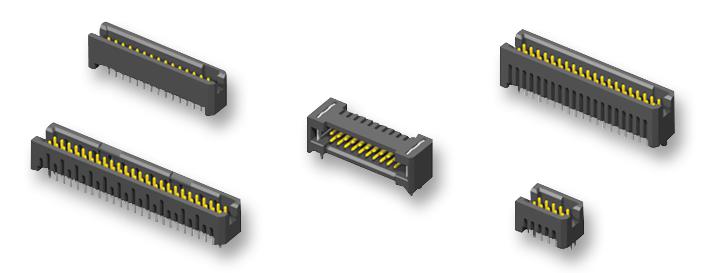

SAMTEC TFML11502SDA Micro Pitch Connector
The TFML-115-02-L-D-K is a high-quality, micro pitch SMT and through-hole header designed for reliable industrial and electronic applications. Featuring a black liquid crystal polymer insulator, phosphor bronze terminals, and Au or Sn plating over Ni, it supports current ratings up to 3.2A per pin at 250 VAC. With a temperature range of -55°C to +125°C and RoHS compliance, this product ensures durability and excellent performance in challenging environments. Suitable for blind mating and various connector configurations, offering robust and versatile connectivity solutions.
SAMTEC TFML11502SDA Micro Pitch Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 um)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.10 mm max (0.004") for 05-25 pins
- Lead Coplanarity: 0.15 mm max (0.006") for 30-50 pins
- Compatible with multiple mating options including SFM, SFMC, SFSD, SFML, and SFSDxX
- Application: Connectors for industrial and electronics applications, available in various configurations for blind mating, surface mount, through-hole, and with optional locking features
Buy the Samtec TFML-115-02-L-D-K – Reliable Micro Pitch Connectors for Industrial Applications
Enhance your electronics projects with the Samtec Micro Pitch Connector TFML-115-02-L-D-K. Designed for reliable performance, featuring premium materials and plating options, it supports high current and voltage ratings, operates across a wide temperature range, and is RoHS compliant. Ideal for industrial, automation, and electronics applications, this connector offers versatility with surface mount and through-hole options. Purchase online today to benefit from fast delivery, high-quality manufacturing, and trusted connectivity solutions that ensure your project's success.
Order your Samtec SeriesTFML-115-02-L-D-K today and ensure dependable, high-performance connectivity for your industrial electronics and automation projects.
Frequently Asked Questions
Where can I buy SAMTEC TFML11502SDA?
You can click on the BUY or RFQ button to purchase TFML11502SDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFML11502SDA?
You can download the TFML11502SDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFML11502SDA?
SAMTEC
