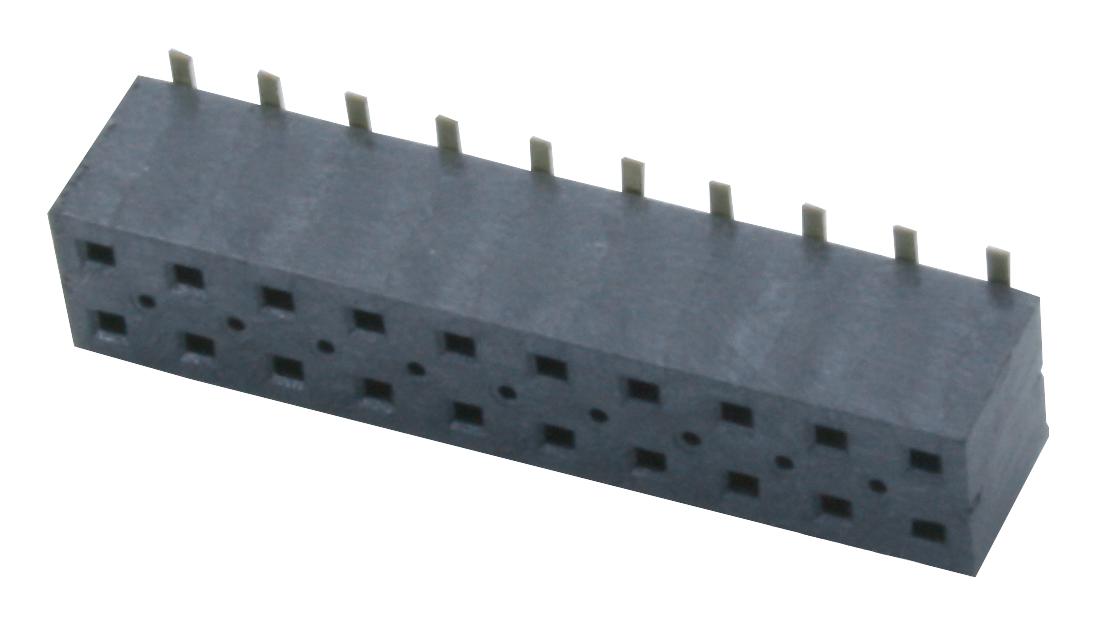

SAMTEC TLE11001GDV Pass-Through Connector
The TLE11001GDV is a high-performance pass-through connector designed for precise PCB applications, featuring a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold over 50 micro-inches of nickel. Capable of handling currents up to 3.2A per pin within a temperature range of -55°C to +125°C, it offers reliable insertion and withdrawal forces suitable for dense electronic assemblies. Compatible with lead-free soldering and RoHS compliant, this connector supports SMT lead coplanarity and optional pick & place pads, making it ideal for compact, high-reliability PCB connections in industrial, automation, and electronic manufacturing sectors.
SAMTEC TLE11001GDV Pass-Through Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50p" Ni (1.27 μm)
- Current Rating: 3.2 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 0.082" to 0.172" (2.08 mm to 4.38 mm)
- Insertion Force: 2.75 oz (0.76 N) average per contact
- Withdrawal Force: 0.80 oz (0.22 N) average per contact
- RoHS Compliant: Yes
- Process: Lead-Free Solderable
- SMT Lead Coplanarity: Max 0.004" (0.10 mm) or 0.006" (0.15 mm)
- Compatible with optional Pick & Place Pads, non-standard lengths or styles may be non-returnable
Buy the Samtec TLE11001GDV – Reliable Pass-Through Connectors for Industrial Applications
Discover the Samtec TLE11001GDV, a high-quality pass-through connector designed for precise PCB connections in demanding industrial and electronic manufacturing environments. Featuring gold-plated phosphor bronze contacts, black liquid crystal polymer insulators, and RoHS compliance, it supports lead-free soldering. Its robust construction ensures reliable electrical performance with a current rating of 3.2A per pin, suitable for dense and complex PCB assemblies. Ease of installation is facilitated by optional pick & place pads, and its wide temperature range guarantees durability in various operational conditions. Order now to secure dependable, high-performance connectivity solutions for your projects.
Buy Samtec TLE11001GDV now and experience unmatched reliability and performance for your high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TLE11001GDV?
You can click on the BUY or RFQ button to purchase TLE11001GDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLE11001GDV?
You can download the TLE11001GDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLE11001GDV?
SAMTEC
