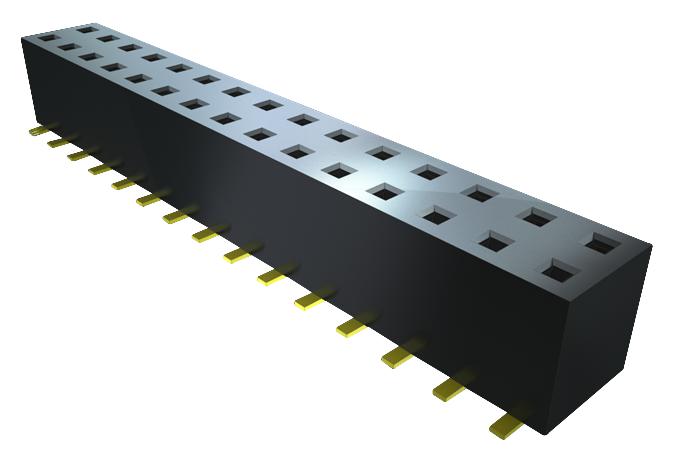

SAMTEC TLE11501GDVA PCB Pass-Through Connector
The TLE115-01-G-DV is a versatile, RoHS-compliant, PCB connection component designed for pass-through applications. Crafted with phosphor bronze contacts plated with gold over nickel, it ensures reliable electrical performance and durability within a wide operating temperature range of -55°C to +125°C. The insulator uses black liquid crystal polymer for thermal stability and insulation. Suitable for SMT assembly, it features a maximum coplanarity of 0.004 inches, with an insertion force of 2.75 oz and withdrawal force of 0.80 oz per contact. Ideal for high-density interconnections, it offers multiple options including pick & place pads and pass-through configurations.
SAMTEC TLE11501GDVA PCB Pass-Through Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50p" Ni (1.27 μm)
- Current Rating: 3.2 A per pin
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 0.082" to 0.172" (2.08 mm to 4.37 mm)
- Insertion Force: 2.75 oz (0.76 N) per contact
- Withdrawal Force: 0.80 oz (0.22 N) per contact
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- SMT Lead Coplanarity: 0.004" max
- Pass-Through Capability: Suitable for multiple row options
- Additional Features: Optional Pick & Place Pads, Non-standard lengths may be non-returnable
